New

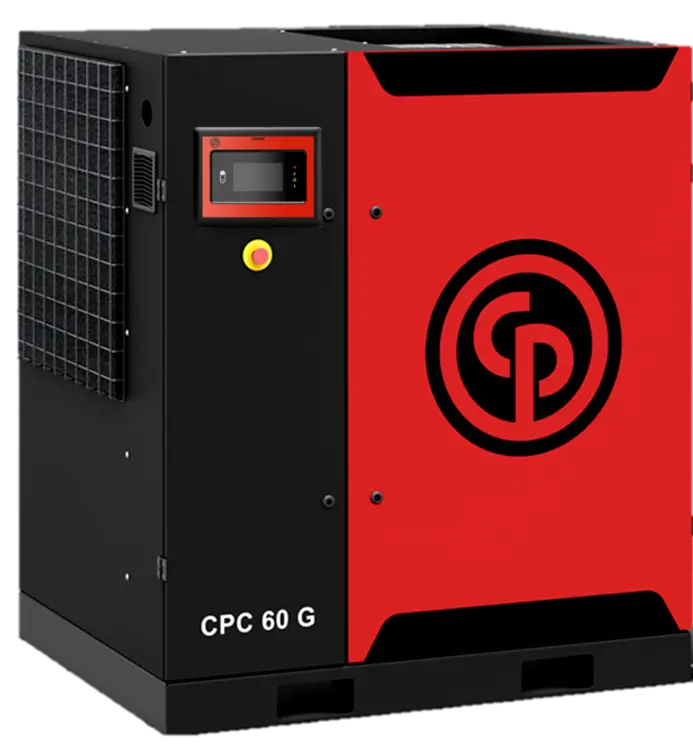

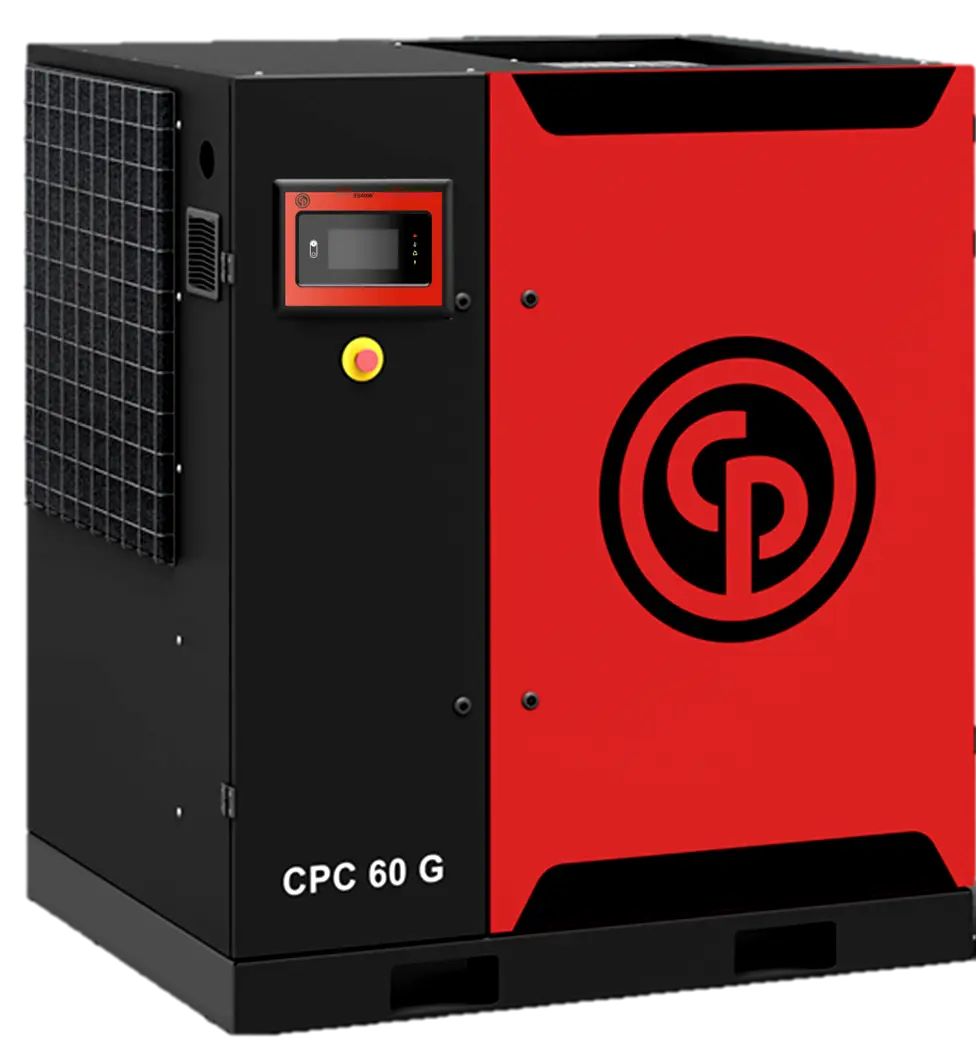

Gear Drive Rotary Screw Air Compressor CPC 60 G
Rotary Screw Air Compressors
Experience the innovation and worry-free operation of the upgraded Chicago Pneumatic gear drive series of rotary screw air 25% smaller footprint compared to the previous generation.
| Flow | 273 ft3pm |
| Power | 60 hp |
Horsepower 60
acfm @ 100 psig 297
acfm @ 125 psig 273
acfm @ 150 psig 249
acfm @ 175 psig 190223
Sound Level (dBA) 68
Base Mount L x W x H (in) 52 x 35 x 71
Net Wt. (lb) 1526
Base Mount w/Dryer L x W x H (in) 72 x 35 x 71
Net Wt. (lb) 1976
* Low sound enclosure — Radial Fan (NEW)
* Water Separator as standard (NEW)
* Reduced oil capacity (-18%) — lower service cost (NEW)
* ICONS ready (NEW)
* Water Cooled variants available (NEW)
* 125 psig readily available
* 100, 150 and 175 psig also available
* Rapid, single-panel maintenance
* Wye-delta, reduced voltage start
* ES4000 Advanced microprocessor control
* 230/460V or 575V TEFC motor
* Temperature protection on drive side motor bearings
* Air/oil sump tank with temperature protection
* Shipped with 8,000 hour synthetic lubricant
* ASME, CRN approved
* cUL, CSA approved
