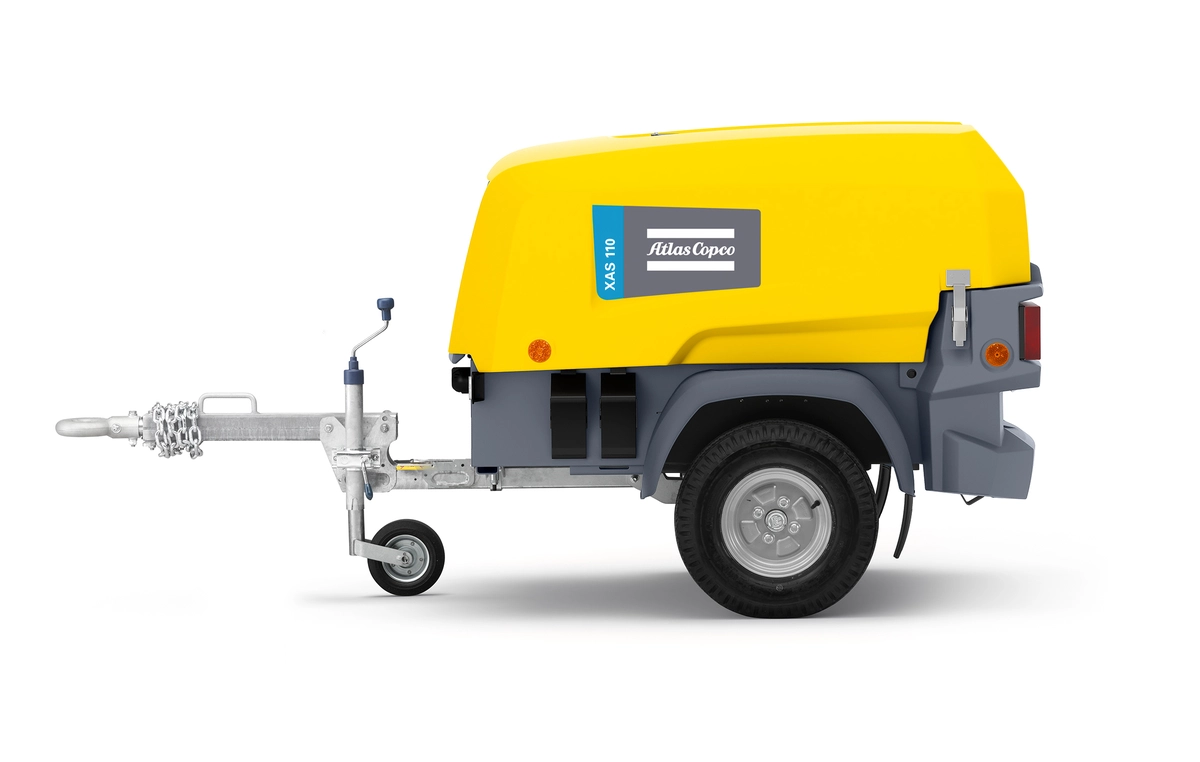

ATLAS COPCO XAS 110
Have one to sell?
ConditionNew
New
The XAS 110 is our latest model and is the result of over a decade of continuous development.This compressor is perfect for single tool applications (or two if the new RTEX breaker is used) and for sites with difficult access and terrain.This model is part of our legendary 8 Series range.The models in the 8 Series have three key things in common:
Lightweight: Always below 1650 Lbs. A footprint at least 10% more compact than any other option.
Service: Simplicity, speed and long service intervals.
Built better: More features as standard. Breaking new ground when it comes to efficiency (at least 12% improved).
The result is a compressor which can produce 110 CFM without the need for any exhaust after treatment.The 8 Series ticks all the boxes when it comes to delivering outstanding performance in all of these categories.
Compressor XAS 110
Actual free air delivery (FAD) cfm 110
Normal effective working pressure psi 100
Max. sound pressure level @ 23’ (7m)
at normal working speed & pressure dB(a) 70
Air receiver capacity US Gal (L) 2.34 (10)
Compressor oil capacity US Gal (L) 1.98 (7.5)
Air compressor outlets 2 x 3⁄4”
Engine
Engine model Kubota D 902 T4F
Emissions regulation US EPA Tier 4 Final
Number of cylinders 3
Engine speed (Unloaded) rpm 200
Engine speed (Maximum loaded) rpm 3600
Engine oil capacity US Gal (L) 0.95 (3.6)
Fuel tank capacity US Gal (L) 7.35 (27.82)
Fuel consumption at 100% load Gal/Hr (L/Hr) 1.32 (4.98)
Dimensions and weight (including undercarriage)
Weight (inc. fuel) lb 1100
Length in 79
Width in 48
Height in 51
- Legendary HardHat® canopy
- Starter motor protection system
- Anti air lock system for guaranteed starting
- Fail-safe lifting beam tested to take four times the weight of the machine
- Three layer anti-corrosion (c3) paint system
- Heavy duty tires as standard on all models
- Strong undercarriage made from a single sheet with no welding. The frame is also spillage free, as standard
- Battery cut off switch
