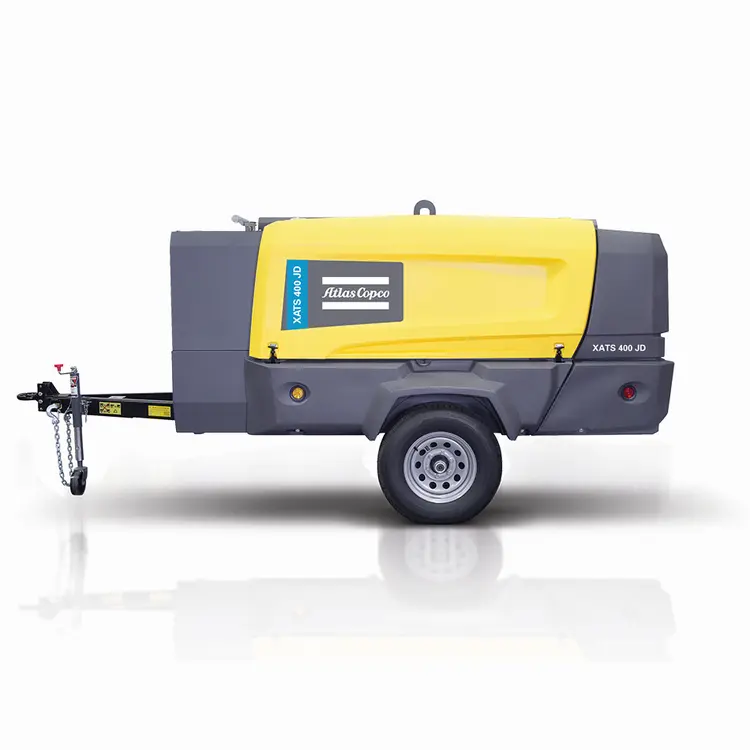

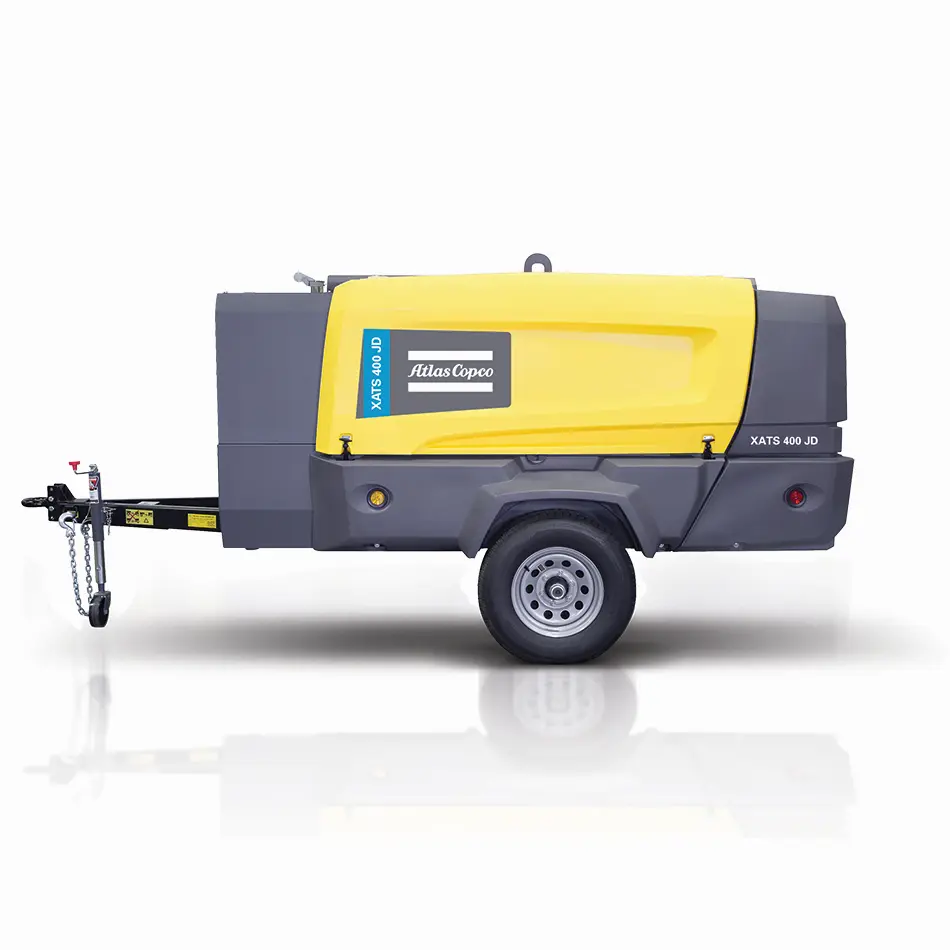

ATLAS COPCO XATS 400 JD T4F
Have one to sell?
ConditionNew
New
The skillfully versatile 400 Series range offers you two models with multiple possibilities. Thanks to its intuitive PACE system (Pressure Adjusted thru Cognitive Electronics) the new 400 cfm models give you the most options from a single compressor. This pioneering technology enables multiple pressure and flow settings, ensuring you match air flow and pressure to your application needs.
Compressor
Working pressure psi(g) 150-200
Free air delivery (1) (FAD) cfm 397-366
Max. sound pressure level@ 23’(7m) at
normal working speed & pressure (2) dB(A) 76
Compression stages 1
Air receiver capacity US gal (l) 11 (41.6)
Compressor oil capacity US gal (l) 6.3 (23.8)
Approximate air outlet temperature °F (°C) 200 (93)
Air compressor outlets 2 x 3⁄4” & 1 x 1 1⁄2
Max. ambient temperature at sea level (3) °F (°C) 125 (51)
Maximum altitude °F (°C) 14,000 (4267)
Min. Starting temperature (without cold
weather options °F (°C) 14 (-10)
Min. Starting temperature with cold
weather options °F (°C) -4 (-20)
Engine
Model John Deere 4045HFC04
Number of cylinders 4
Emissions US EPA Tier T4F
Output at rated speed (2400 rpm) hp 148
Aspiration Turbocharged
Displacement cu in (l) 269 (4.5)
Engine speed (unloaded) rpm 1500
Engine speed (maximum loaded) rpm 2000
Capacity and consumption
Engine oil capacity US gal (l) 5.4 (20.5)
Engine oil required Low Ash Oil per API CJ-4 ACEA C9
Engine coolant capacity US gal (l) 6.25 (23.6)
Fuel tank capacity US gal (l) 52 (197)
Fuel consumption at 0% load gal/hr (l/hr) 1.7 (6.4)
Fuel consumption at 100% load gal/hr (l/hr) 6.5 (24.5)
DEF tank capacity US gal (l) 5.7 (21.7)
DEF consumption at 100% load gal/hr (l/hr) 0.30 (1.1)
Battery capacity (cold cranking amps) (4) A 1100
SERVICE LIFE
The 400 cfm range extends the compressor oil service interval to 1000 hours or once every two years. Reduced service intervention and longer life of consumables reduces total cost of operation and increases availability.
XC2003 CONTROLLER
The intuitive XC2003 controller keeps track of your compressor’s utilization and prompts for planned service interventions. Service can be performed from a single side.
ENGINE PERFORMANCE
The range is powered by a 4-cylindered John Deere Tier Final engine, reducing the emmission of NOx and particulate matter to near
zero levels.
ROBUST DESIGN
The range was tested both in lab and field conditions to ensure optimal performance. It’s designed to withstand the toughest working conditions.
The updated HardHat canopy is our toughest, most aesthetically pleasing canopy to date. It’s corrosion free and needs no painting or dent repair.
LOW FUEL CONSUMPTION
Combining the Atlas Copco screw element with a John Deere diesel engine, we deliver a range that is best in class for fuel economy.
EASY TO MOVE
Lightweight and compact, both models can be towed. The compressor is mounted on a single axle, enhancing its maneuverability on site.
