New

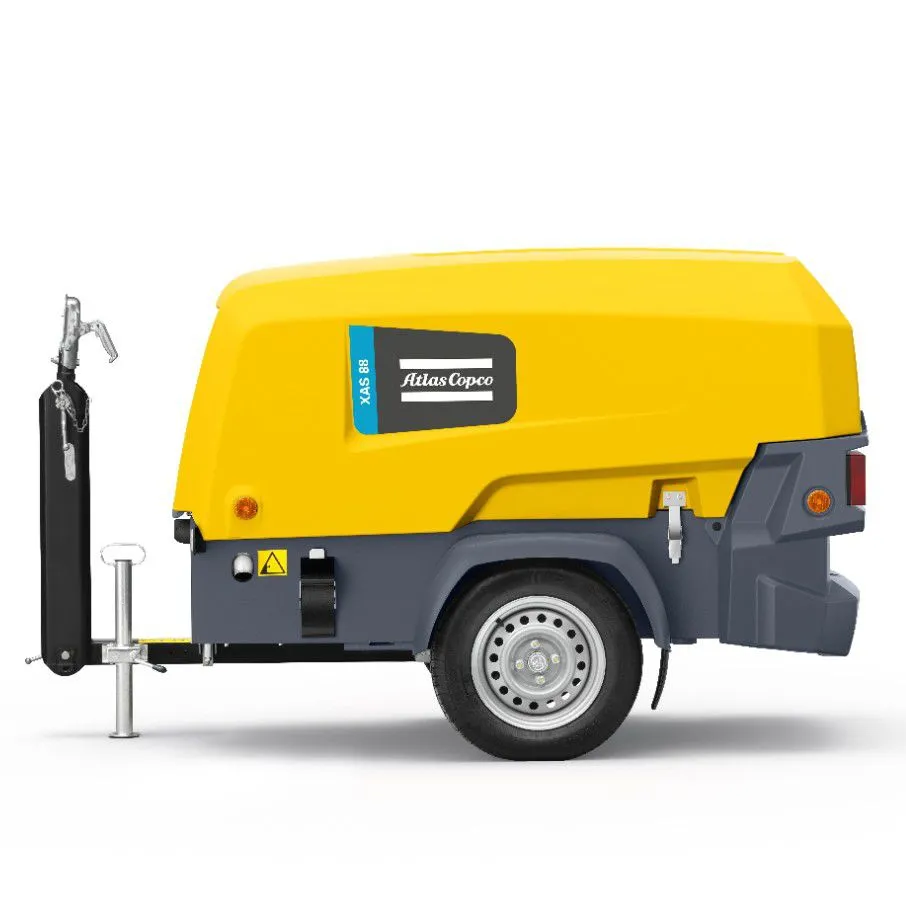

ATLAS COPCO XAS 88
Portable Air Compressors
The new XAS 88 is the result of over a decade of continuous development. The result is a compressor which is durable, lightweight and compact.
However, we understand that this means nothing without efficiency. Efficiency can mean many things, including reduced service time, fuel consumption or increased utilization.
The 8 Series ticks all the boxes when it comes to delivering outstanding performance in all of these categories.
Performance
Normal effective working pressure Psi (g) 100
Free air delivery CFM 175
Max. ambient temperature at sea level °C 50
Min. starting temperature °C -10
Min. starting temperature (cold start aid) °C -20
Engine
Engine brand Kubota
Engine model V1505 iT4
Number of cylinders 4
Power output @ normal shaft speed hp 45
Full load rpm rpm 3000
Unload rpm rpm 1850
Fuel consumption L/hr 7.6
Capacity
Engine oil L / US Gal 5.5 / 1.45
Compressor oil L / US Gal 7.7 / 2.05
Fuel tank L / US Gal 60 / 15.85
Dimensions : box unit
Length inches 76
Width inches 46
Height inches 45
Weight box lbs 1433
Transport dimensions : undercarriage
Length inches 90
Width inches 53
Height inches 55
Weight portable lbs 1650
Reliable and high performance Kubota engine
Legendary HardHat® canopy
Starter motor protection system
Three layer anti-corrosion (c3) paint system
Anti air lock system for guaranteed starting
Battery cut off switch
Encased wire routings for extra protection
