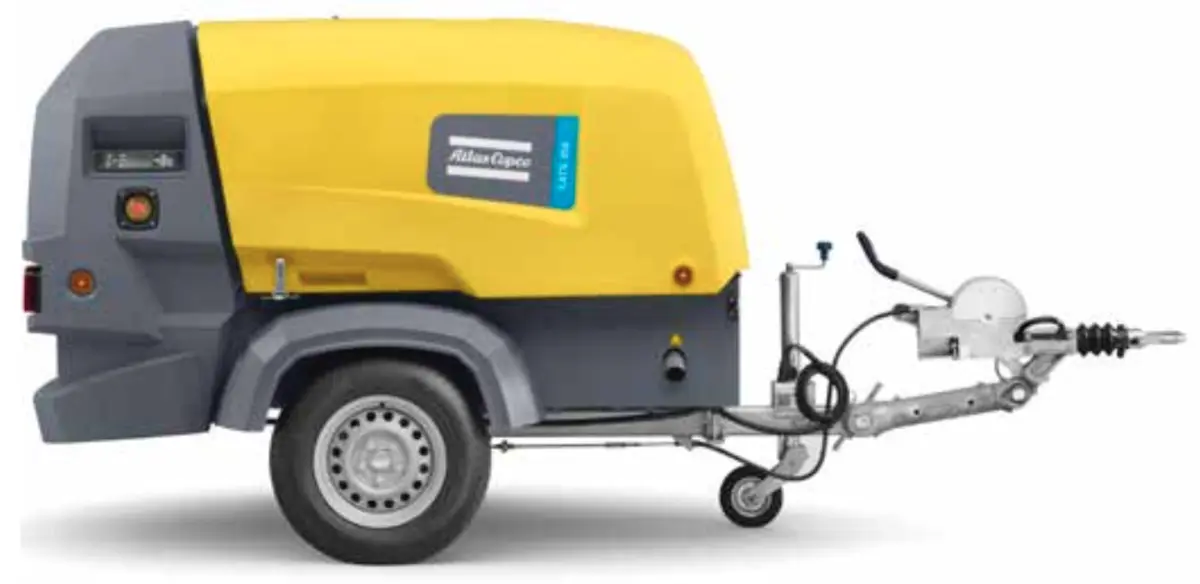

ATLAS COPCO XATS 250
Have one to sell?
ConditionNew
New
The XATS 250 “crossover” is the compressor you have been looking for. This compact, easy to move compressor gives you the added flexibility of being able to provide more pressure and flow, dependent on your application needs.
Thanks to its intuitive PACE system (Pressure Adjusted thru Cognitive Electronics) you receive the most options from a single compressor. This pioneering technology enables multiple pressure and flow settings, ensuring you match air flow and pressure to your application needs.
Normal effective working pressure psig 100-150
Actual free air delivery cfm 250-189
Max. sound pressure level @ 7m dB(A) 76
Max. ambient temp °F (°C) 113 (45)
Min. starting temperature °F (°C) 14 (-10)
Min. starting temp (cold start ) °F (°C) -4 (-20)
Engine Kubota
E4B V2403-CR-T-E4B
Emission stage Tier 4F
Engine power hp 65
Full load rpm 2700
Unload rpm 1800
Engine oil US gal (L) 2.5 (9.5)
Compressor oil US gal (L) 3 (11.3)
Fuel tank US gal (L) 23 (87)
Dimensions
Length (inc. fixed tow bar) inch 148
Width inch 63
Height inch 62
Weight lbs (kg) 2560 (1164)
• Pressure can be set with the XC2003 controller in 3 simple steps. Pressure can be adjusted within increments of 1 psi. You can also track the compressor’s utilization and planned service interventions.
• The XATS 250 features the latest, toughest design. The HardHat protects all internal components, keeps the machine looking as good as “new” and increases the residual value.
• Lightweight and compact, this model can be easily towed. The XATS 250 is mounted on a single axle, enhancing its maneuverability on site.
• The long service intervals and longer life of all consumables reduces your total cost of operation and increases utilization. Features, such as spin on air and oil separators, ensure service interventions are simple and efficient.
• 100% guaranteed to contain all fluids. This is not an option – it comes as standard. The 3 layer corrosion protection coating (category C3) extends lifetime and increases residual value.
• Combining the Atlas Copco screw element with a Kubota diesel engine, we deliver a compressor that is best in class in terms of fuel economy.
• The XATS 250 is powered
by a 4-cylinder Kubota engine. Compliant with DOC & DPF. This brings you emission compliance at no additional maintenance cost.
Options Available:
- Support mounted frame
- Cold weather kit
- Aftercooler & water separator - Inluet shutdown valve
