Customer Oriented Monitoring System
Provides convenient operation and accurate control
Flow Rate m3/hr 3,300 - 5,300
CFM 1,950 - 3,100
Power kW 210 - 680
HP 282 - 913
Discharge bar A 3.5 - 1.8
Psi A 50 - 265
Dimension (L×W×H) mm (P) 4,750 x 2,100 x 2,500
*Dimension and mm (S) 3,150 x 1,980 x 2,100
weight are inch (P) 187x83x98
subject to change inch (S) 124x78x83
Weight kg (P) 8,700
kg (S) 7,050

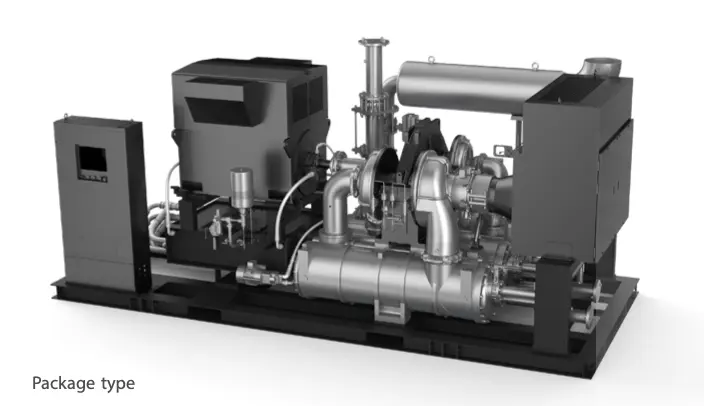

PACKAGE TYPE (P) STANDARD TYPE (S)
Air intake filter (P) (S-Option)
Inlet guide vanes (P) (S)
Blow off valve (P) (S)
Silencer (P) (S-Option)
Check valve and expansion joint (P) (S)
Complete lubrication system (P) (S)
Aftercooler (P) (S)
Drain traps on all coolers (P) (S)
Main motor (P) (S)
PLC control system (P) (S)
Base frame (P) (S)
Cooling water manifold (P) (S-Option)
OPTIONS
Sound enclosure (S-Not applicable)
Dual oil filter
Block valve
Companion Flange
Hot air piping
Auto trap
MODBUS/PROFIBUS Interface
Motor winding/ bearing protection
