Customer Oriented Monitoring System
Provides convenient operation and accurate control
Flow Rate m3/hr 5,300 - 8,400
CFM 3,100 - 4,950
Power kW 310 - 1,010
HP 410 - 1,350
Discharge bar A 3.5 - 1.8
Psi A 50 - 265
Dimension (L×W×H) mm (P) 5,100 x 2,250 x 2,500
*Dimension and mm (S) 3,780 x 2,080 x 2,130
weight are inch (P) 201x89x98
subject to change inch (S) 149x82x84
Weight kg (P) 10,250
kg (S) 8,400

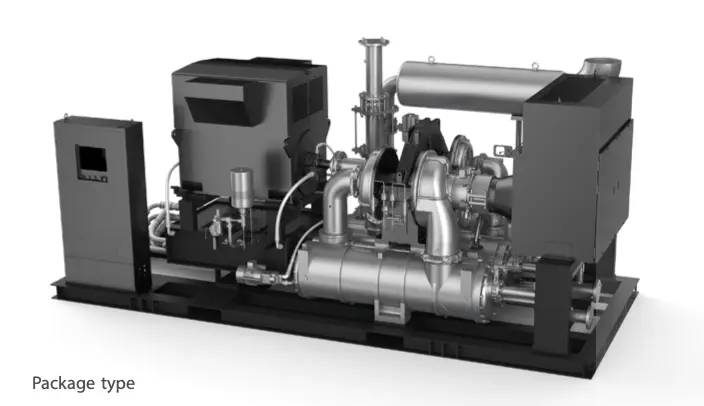

PACKAGE TYPE (P) STANDARD TYPE (S)
Air intake filter (P) (S-Option)
Inlet guide vanes (P) (S)
Blow off valve (P) (S)
Silencer (P) (S-Option)
Check valve and expansion joint (P) (S)
Complete lubrication system (P) (S)
Aftercooler (P) (S)
Drain traps on all coolers (P) (S)
Main motor (P) (S)
PLC control system (P) (S)
Base frame (P) (S)
Cooling water manifold (P) (S-Option)
OPTIONS
Sound enclosure (S-Not applicable)
Dual oil filter
Block valve
Companion Flange
Hot air piping
Auto trap
MODBUS/PROFIBUS Interface
Motor winding/ bearing protection
