HANWHA SM6000
Have one to sell?
ConditionNew
New
Customer Oriented Monitoring System
Provides convenient operation and accurate control
Flow Rate m3/hr 15,000 - 21,000
CFM 8,850 - 12,400
Power kW 780 - 2,350
HP 1,050 - 3,150
Discharge bar A 3.5 - 1.8
Psi A 50 - 265
Dimension (L×W×H) mm (P) 6,200 x 2,300 x 2,550
*Dimension and mm (S) 4,480 x 2,220 x 2,520
weight subject inch (P) 244x91x100
to change inch (S) 176x87x99
Weight kg (P) 17,550
kg (S) 15,250

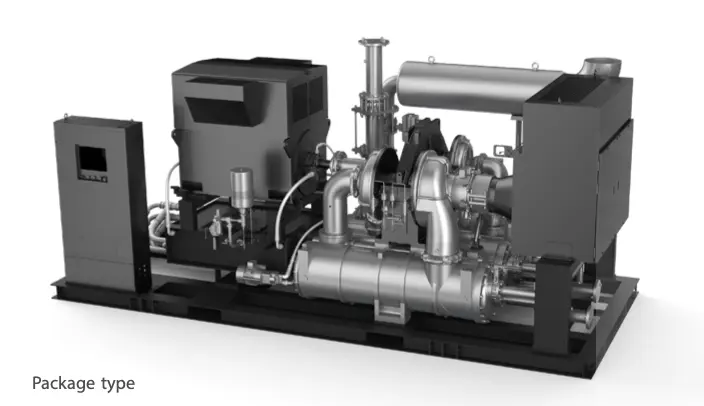

PACKAGE TYPE (P) STANDARD TYPE (S)
Air intake filter (P) (S-Option)
Inlet guide vanes (P) (S)
Blow off valve (P) (S)
Silencer (P) (S-Option)
Check valve and expansion joint (P) (S)
Complete lubrication system (P) (S)
Aftercooler (P) (S)
Drain traps on all coolers (P) (S)
Main motor (P) (S)
PLC control system (P) (S)
Base frame (P) (S)
Cooling water manifold (P) (S-Option)
OPTIONS
Sound enclosure (S-Not applicable)
Dual oil filter
Block valve
Companion Flange
Hot air piping
Auto trap
MODBUS/PROFIBUS Interface
Motor winding/ bearing protection
