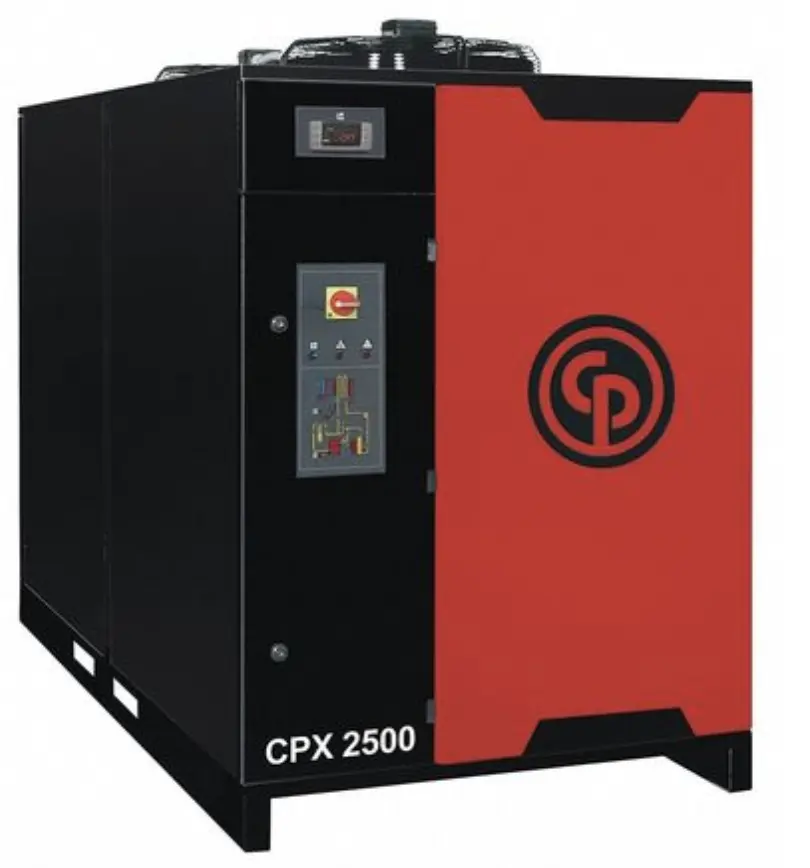

CHICAGO PNEUMATIC CPX-2500
Have one to sell?
ConditionNew
New
The CPX Refrigerated Air Dryers For All Applications
Sized to handle 12 to 2966 cfm, the CPX dryers fit any application. Extremely quiet and reliable, CPX dryers deliver dry air with minimal pressure drop. These dryers are machines designed for treating compressed air. By using the refrigerant characteristics of certain fluid, these dryers lower the temperature of the compressed air, causing water vapor to condense and discharge prior to it entering any distribution system.
cfm @ 100 psig 2400
Max. Pressure 188
Electrics* V/Ph/Hz 460/60/3
Weight (lbs) 1323
L (in) 40
W (in) 83
H (in) 60
Refrig. R-404A
Noise (dBA) 74
Refrigerant compressor
Refrigerant condenser
Fan
Refrigerant filter
Capillary tube
Air/refrigerant heat exchange
Liquid separator
Hot gas bypass valve
Air heat exchange
Condensate separator
Automatic condensate discharge
