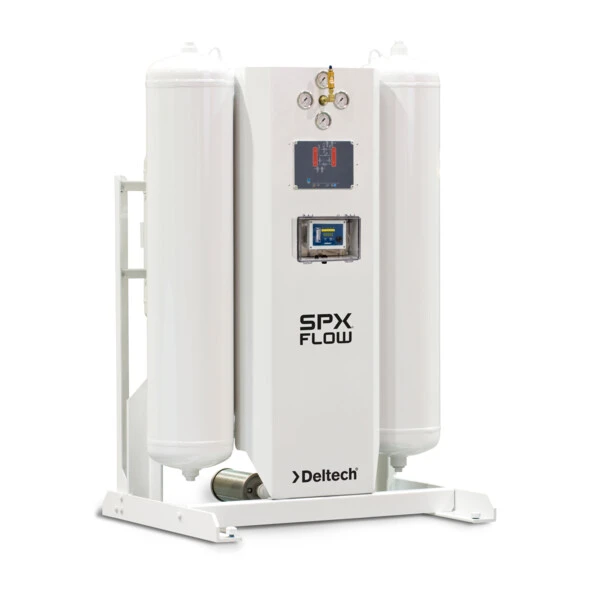

SPX FLOW DM 15 Breathing Air Purifier
Have one to sell?
ConditionNew
New
Del-Monox® Breathing Air Purifiers remove moisture, solid particles, oil aerosols and mists, carbon monoxide, and hydrocarbon vapors commonly present in compressed air. The resulting air can be safely used by supplied-air breathing devices such as masks, hoods and helmets.
INLET FLOW 1
- SCFM 18
- NM3/H 31
OUTLET FLOW 1
- SCFM 15
- NM3/H 26
VOLTAGES (V/PH/HZ) 85-264/1/47-63 AC 11.5-28 V DC
IN/OUT CONNECTIONS 1 NPT
DIMENSIONS
- Height IN/MM 49/1244
- Width IN/MM 42/1067
- Depth IN/MM 35/889
WEIGHT LB/KG 440/200
FILTRATION & MONITORING
• Pre-filtration removes solids and oils
• After-filters collect remaining particles and adsorb vapor
• CO catalyst converter
• Air sample ports for optional analyzer installation
MOISTURE INDICATOR
• Visual color change
PRESSURE GAUGES
• Left / right tower
• Inlet / outlet purifier
• Purge pressure
STANDARD CONTROLLER
• NEMA 4/4X with critical LED indicators
• Soft on / off switch with two power recovery modes
• Switching failure alarms
• Adjustable service indications
• Tower / valve status LEDs
• Voltage free common alarm contacts
• RS-232 communications port
OPTIONS
• Nema 7 electrical rating
• Copper, brass or stainless steel
instrument tubing and fittings
• Breathing air analyzers
• Advanced Level -2 Controls:
- Vacuum fluorescent text display
- Automatic energy savings
- Calibration-free temperature sensors
- High inlet temperature & low inlet pressure alarms
