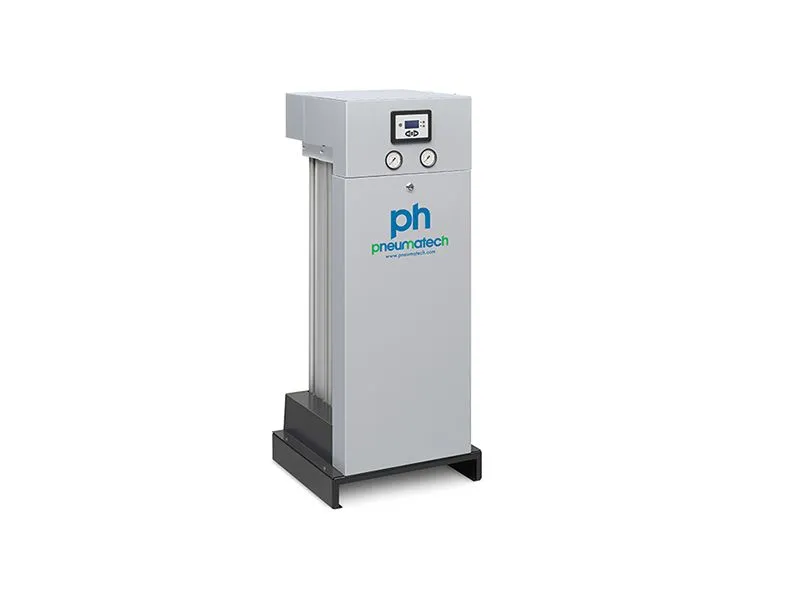

PNEUMATECH PH 55 S Heatlees Dryer
Have one to sell?
ConditionNew
New
Incorporating high-quality components, PH heatless adsorption dryers provide you with clean, dry air to extend the life of your equipment and products. Heatless adsorption dryers use dry, expanded purge air to remove moisture from the desiccant material.
Nominal volume flow at dryer inlet l/s 25
m3/hr 90
Regeneration air consumption
aver- age at max flow (1) (2) % 18.5
Pressure drop at max flow barg 0.03
psig 0.44
Connection inlet/ outlet G 1/2"
NPT 1/2"
Integrated filter model Super fine TF2CS
Dust TF2SS
Height mm 1070
Inch 42.1
Width mm 620
Inch 24.4
Length mm 401
Inch 15.8
Mass KG 87
Lb 191.8
Heatless adsorption dryers: extruded profile design
Dew points achievable: -20°C/-3°F & -40°C/-40°F
Pressure range: 4-14 barg / 58-203 psig
Ambient temperature range: 1-45°C/34-113°F
Inlet temperature range: 1-50°C/34-122°F
Power supply: 230VAC 50/60Hz & 115VAC 50/60Hz
Advanced energy management for lowest operating costs
- Compressor synchronization
- Purge nozzle optimization (2 nozzles)
- PDP control (optional)
High reliability and low maintenance costs thanks to unique valve design (patent pending)
High-quality desiccant, resulting in a consistent PDP of -20°C/-3°F or -40°C/- 40°F
Spring-loaded desiccant, minimizing the risk of crushing
Counter-current regeneration for optimal energy efficiency and guaranteed dry air
Designed for transportability & mountability
- Wall-mounting kit for PH 55-140 S (optional)
Advanced controller to monitor machine status at all times
Desiccant bags for easy service from the top
