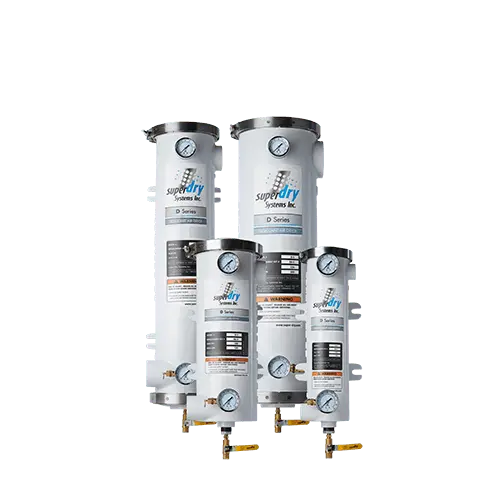

SUPER-DRY D-3 Compressed Air Dryer
Have one to sell?
ConditionNew
New
Super-Dry Compressed Air Dryers contains two highly efficient polypropylene coalescer elements at inlet & outlet ports to absorb oil and all solid air particles. Also included, one desiccant bag specifically designed to absorb water vapors and humidity from your compressed air system.
Air flow 100 psig scfm 200
Inlet/Outlet NPT in 2
Dimensions (in)
- A 9
- B 33
- C 30
Replacement kit ED-3
Weight (lbs) 75
» Heavy duty aluminum casting for high durability and corrosion resistance
» Powder coated exterior for added durability
» Special V-band stainless steel clamps permit easy
removal of covers for cartridge replacement
» Optimized air flow through housing minimizes
pressure drop
» Wall mounting brackets included
» 3 stages in one unit: separation, filtration and drying
Enhanced Performance
» Easy replaceable self-contained desiccant cartridges
» High efficiency polypropylene coalescent elements
» Optimum filter efficiency even at low air flows
» 10 year warranty
» Life expectancy: 25 years Pressure dew point: - 40° F*
» Max. working pressure: 150 PSIG
