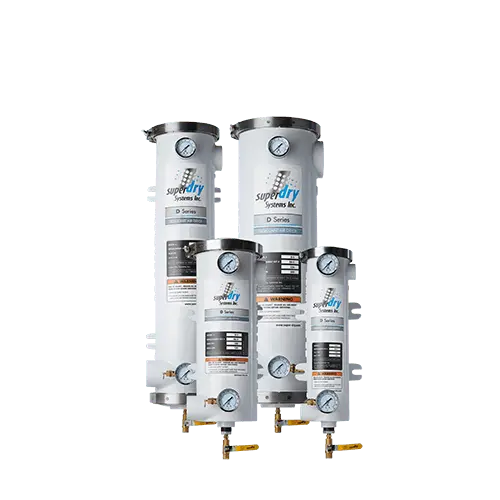

Super-Dry Compressed Air Dryers contains two highly efficient polypropylene coalescer elements at inlet & outlet ports to absorb oil and all solid air particles. Also included, one desiccant bag specifically designed to absorb water vapors and humidity from your compressed air system.

» Heavy duty aluminum casting for high durability and corrosion resistance
» Powder coated exterior for added durability
» Special V-band stainless steel clamps permit easy
removal of covers for cartridge replacement
» Optimized air flow through housing minimizes
pressure drop
» Wall mounting brackets included
» 3 stages in one unit: separation, filtration and drying

Enhanced Performance
» Easy replaceable self-contained desiccant cartridges
» High efficiency polypropylene coalescent elements
» Optimum filter efficiency even at low air flows
» 10 year warranty
» Life expectancy: 25 years Pressure dew point: - 40° F*
» Max. working pressure: 150 PSIG
