JORDAIR H5-157-3E
Have one to sell?
ConditionNew
New
The 2021 Helium Compressor features a new identity with two tone colour and ease of service from the rear of the unit. Many new features provide a service friendly and technically advanced design with active customer interface.
The upgrades include a nationally certified 7300 PSIG oil/water final separator and optional filter systems for added safety and extended component life of 35 operating years.
The standard system includes a full customer touch screen HMI with real time monitoring of oil pressure, inlet pressure, final pressure and final stage discharge temperature.

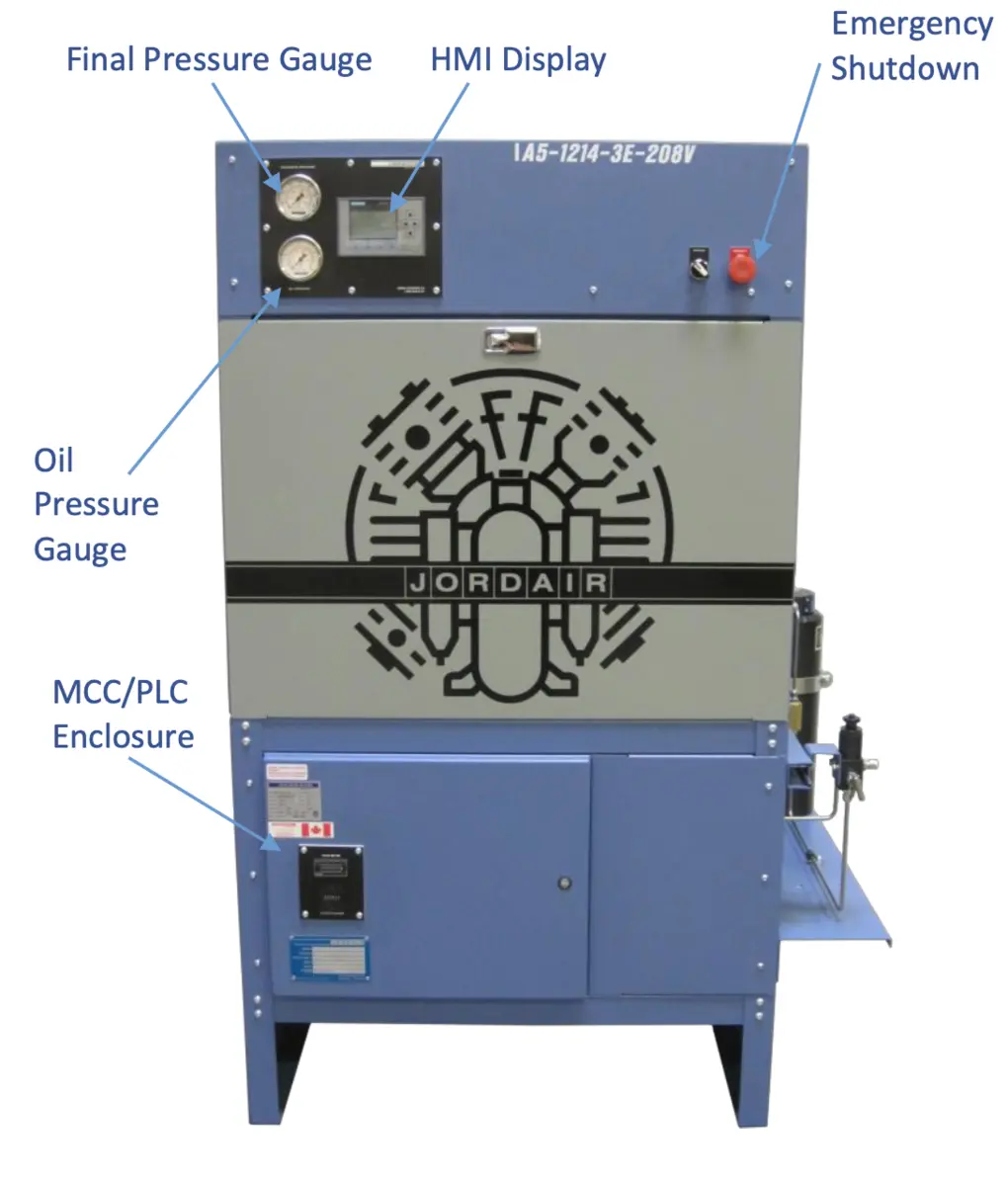

Compressor service is accessible from a front removable panel for drive belt access and a rear panel for compressor service access. Oil pressure, inter-stage and final pressure gauges are located and installed on the compressor block.
FLOW RATE 14.8 SCFM
MOTOR 15 HP
OIL & WATER SEPARATOR JBF61-7300-6
WEIGHT 400 KG
SIZE (CM) H xD xW 152 x 85 x 137
System Features:
Balanced Design
Low Noise
Block Features:
Low Oil Consumption
Oil Filter Cartridge
High Tech HP Piston
Heavy Duty Crank
SCOPE OF SUPPLY AND OPTIONS
Fully enclosed vertical frame with front and back service access panels
Auxiliary fan system to increase the compressor block cooling air flow by 150%
Logo 8 PLC with panel mounted 6" x 8" HMI touch screen showing compressor fault data Low oil pressure transmitter with display and alarm with screen display of the fault
High temperature RTD display with alarm and screen display of the fault
Final pressure transmitter set for customers required shut down pressure
Inlet pressure transmitter with display and alarm with screen display of the fault Inlet solenoid to close off the Helium supply at the compressor shut down
Auto-run and stop mode operation with emergency shut down button
Optional Flexy data modem connection to the customer and service technicians cell phone
Pressure transmitters for real time display of the inlet pressure, final pressure and oil pressure
Oil & inter-stage pressure gauges are mounted on the block and visible at the back side of the compressor
Final CRN certified filter for drying and 100% removal of oil from the Helium
Nationally certified CRN registered 7300 PSIG final coalescing separator with recovery connection for no gas loss Final separator cycle counter to ensure filter system safety and record pressure cycles
Cycle count is displayed on the panel mounted display screen
Final separator and filter life rated for 35 years or 100,000 pressure cycles
Automatic condensate drain and silent collection system to recover all gas
Fully enclosed frame and optional silent insulation
Compressor sub-base for factory install of the gas recovery tank, and regulated gas return to inlet
