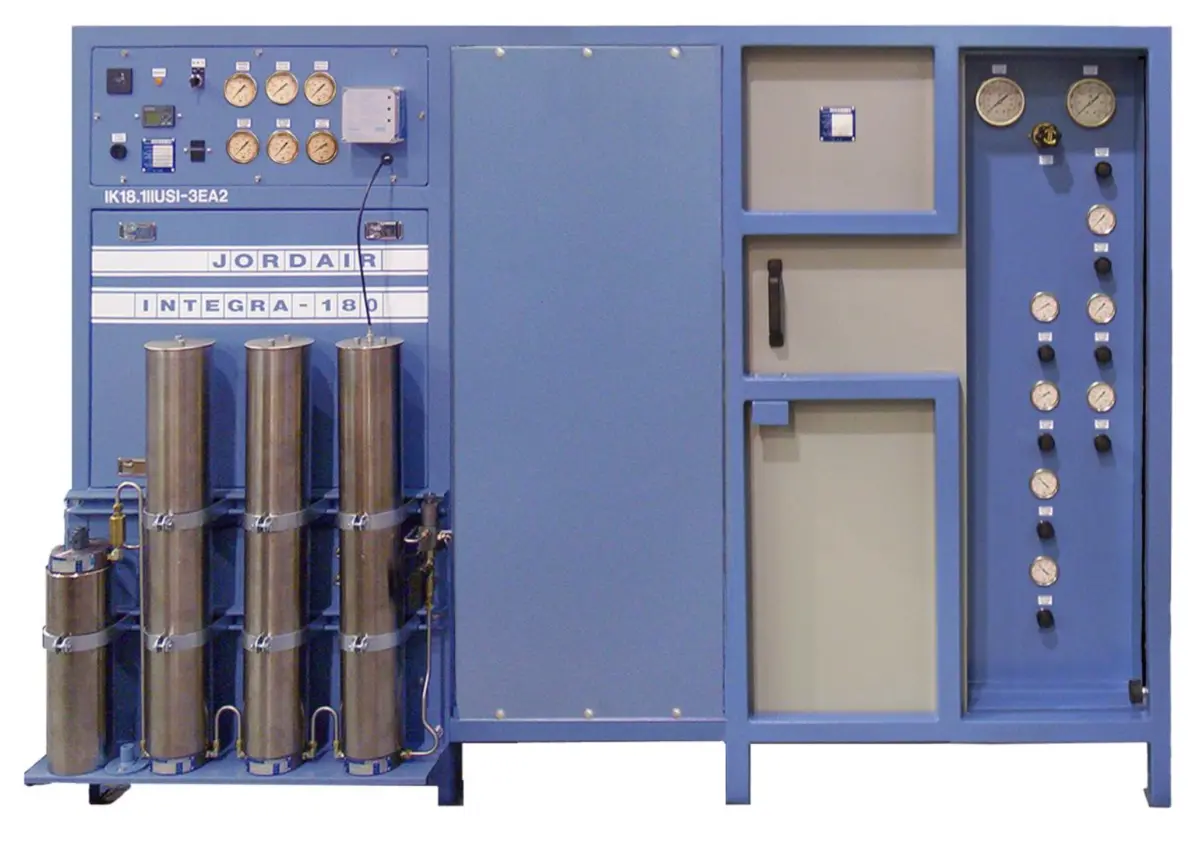

The 2021 INTEGRA features a new identity with two tone colour and ease of service from the rear of the unit. Many new features provide a service friendly and technically advanced design with active HMI screen customer interface which displays oil and final pressures and final temperature. Nationally certified 7300 PSIG filter systems for added safety and extended component life of 35 operating years. The Ewon Flexi 205 provides the customer and service group with instant notification if a fault occurs via cell phone
FLOW RATE 30.0 SCFM
MOTOR 20 HP
FILTRATION SYSTEM JBP81-7300-6-S
CAPACITY* 188,200 FT3
System Features:
Balanced Design
Low Noise
35 Year Filter Chambers
Extended Cartridge Life
Block Features:
Low Oil Consumption
Oil Filter Cartridge
High Tech HP Piston
Heavy Duty Crank
SCOPE OF SUPPLY AND OPTIONS
Fully enclosed and silent frame design for a 72 D.b.a sound level at 1 meter
- Includes an auxiliary fan which increases block cooling by 150% more than the block mounted fan
- Increased cooling ensures the filtered air is at a maximum of 3C above ambient and provides the most efficient
and longest cartridge life with high air purity
- Logo 8 PLC with panel mounted 5" x 8" TP700 HMI screen showing the operating data and compressor fault data
- Panel mounted CO monitor with regulator
- Panel mounted Securus Moisture Monitor
- Low oil pressure transmitter and alarm and screen display of the fault and actual operating data
- High temperature transmitter with alarm and screen display of the fault and actual operating data
- Final pressure transmitter set for customers required shut down pressure
- Final pressure displayed on the HMI screen
- Auto-run and manual mode operation with emergency shut down button
- Optional connection to the customer and service technicians cell phone
- Inter-stage and oil pressure gauges are mounted on the block and visible at the back side of the compressor
- Nationally certified CRN registered 7300 PSIG filter system matched to the compressor capacity
- Final separator cycle counter to ensure filter system safety and record pressure cycles
- Cycle count is located on the MCC panel enclosure door
- Hour meter is located on the MCC panel enclosure door
- Audible alarm is located on the MCC panel enclosure door
- Filter system life rated for 35 years or 100,000 pressure cycles
- Automatic condensate drain and silent collection system
- The automatic drain system unloads the compressor at shut down and ensures an unloaded compressor start cycle
