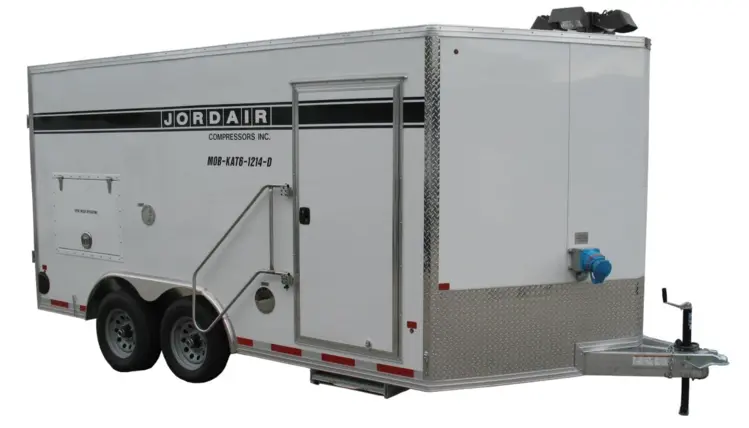

JORDAIR MOB-KAT6 1214-DPT

STANDARD FEATURES:
PLC controlled compressor system able to operate from the unit mounted diesel generator or from the auxiliary shore power supply.
- Fully contained and road certified air trailer for breathing air.
- Dual rear access doors for ease of entry and service of the
equipment
- Large upward opening access doors with pneumatic rams on both sides for unit operation, SCBA recharging and generator service capability.
- Dual high capacity fans to provide the correct cooling air flow for the compressor and generator set in high ambient temperatures.
- Internal heater to maintain correct winter temperatures and pre-operating cooling air flow for the compressor and generator set in high ambient temperatures.
- Internal heater to maintain correct pre-operating temperatures during outside storage in sub zero ambient conditions.
- Standard with three 6000 PSIG TC/DOT cylinder air storage system. Optional added storage.
- Fully independent diesel generator sized to operate the
compressor and auxiliary power requirements.
- Independent control for starting the diesel generator with system fault monitoring and safety shut down features.
- Diesel fuel tank with 50 litres capacity
- Auxiliary power receptacles located at the side access door for operation of small power tools or extension cords.
- Secondary shore power fused disconnects and 25’ of power cable for operation of the system without the diesel generator.
- Pneumatic telescoping light pole, automatically deploys when the light switch is engaged with four 500 Watt halogen lamps.
- External fresh air intake with dust removing pre-filter.
- Silent version high pressure compressor.
- Filter system includes the Securus cartridge moisture control monitoring system with warning and automatic shut down features.
- CO monitoring system with audible alarm and shut down features and includes calibration kit.
- NFPA 1901 certified fill station with automatic safety air control shut off valve when the SCBA access door is open.
- Fill pressures of 2216, 4500 or 5500 PSIG SCBA recharging is standard. Optional multiple fill pressures are available.
- Open storage area suitable for storing up to 20 spare SCBA cylinders and other items or tools.
- Control valves for air storage cascade system.
- All pressure components are CRN certified and registered in all provinces in Canada.
- The complete system is CSA certified.

UPGRADE OPTIONS:
- Dual ambient and/or booster compressor system is able to operate from the ambient air then switch over to the booster made and use all the stored air in the cascade cylinders. The stored air can be used down to 100 PSIG and boosted up to the required SCBA fill pressure of 2216 PSIG or 4500 PSIG. This option provides the security to continue to refill SCBA cylinders with pure air when the ambient air is contaminated.
- CO2 inlet scrubber is very valuable when the ambient air has a high CO2 content.
- CO2 monitoring system is recommended to monitor the intake air after the CO2 scrubber with a high level alarm and switch over to booster mode or system shut down.
- Larger capacities of filter systems for extended filter cartridge life.
- Single or all fill points of the SCBA fill station available in dual 2216 PSIG and/or 4500 PSIG cylinder recharging.
- SCUBA cylinder 3000 PSIG or 3500 PSIG fill point available.
- PLC control for the fill station providing operator log in and exact fill rates for all cylinders at a rate of 300 PSIG per minute regardless of the pressure in the cylinder.
- Dual preset regulators for 2216 PSIG and 4500 PSIG SCBA cylinder recharging available.
- External connection point for recharging HP air storage cylinders on trucks, air trailers or air carts.
- Manual HP hose reel with 100 feet of 6000 PSIG hose and quick disconnect.
- Low pressure air system with manual or automatic retraction hose reels and 100 feet of breathing air hose available.
