Deltech DSHD-27 Desiccant Air Dryer
Have one to sell?
ConditionNew
New

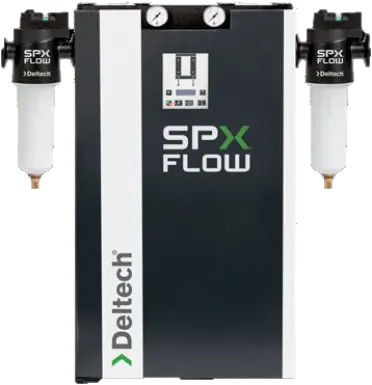

Deltech’s DSHD Series Modular Desiccant Air Dryers protect moisture sensitive applications requiring low pressure dew points. Delivers dew points of ISO 8573-1: 2010 Class 1 (-94°F, -70°C) and Class 2 (-40°F, -40°C) with flow rates of 7 to 40 scfm (12 to 68 nm3/h). Critical applications include labs, hospitals, pharmaceutical manufacturing and other high-tech installations.
The DSHD Series incorporate a time proven design, with superior features and reliability, in a compact and easy to install package.
300 SERIES FILTER PACKAGES STANDARD
•
Grade H3 coalescing prefilter captures oil down to 0.008 mg/m3
•
Grade P3 afterfilter removes solids 1.0 micron and larger
•
Consistent outlet pressure dew points
•
Selectable pressure dew point performance for maximum application flexibility
•
Minimum purge air usage saves energy
•
Desiccant beds sized to prevent fluidization plus slow and complete regeneration prevents desiccant aging
•
Non-lubricated, soft seated control valves promotes reliable operation
•
Heavy duty purge exhaust muffler for quiet operation
•
Electronic controls to monitor status & operation
•
Power on light
•
Tower indicator lights
•
On-off switch
HIGHLY ACCURATE SOLID STATE TIMER
•
Standard 4 minute cycle time delivers ISO Quality Class 2 pressure dew point
•
Flow deration delivers ISO Quality Class 1 pressure dew point
•
Powder coasted cabinet for long term durability
•
Fully assembled, piped and wired eases installation
•
Extruded aluminum columns to house desiccant cartidges
•
Supplied with 6’ (1.8 m) power cord
•
Flexible installation with multiple inlet/outlet options
•
Floor mount support for secure installation
•
One-year warranty standard
•
Up to five-year warranty with purchase of annual maintenance kit
