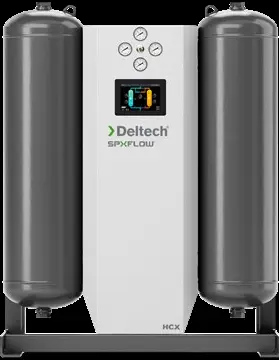

SPX Deltech HCT-40 Heatless Regenerative Air Dryer
Have one to sell?
ConditionNew
New
The HCX, HCL & HCT Series
Deltech’s HC series heatless desiccant dryers are designed to efficiently dehydrate compressed air to dew points as low as ISO 8573-1 Quality Class 1
(-94°F/-70°C)
Industries such as pharmaceutical manufacturing, laboratories, hospitals, microelectronics, food packaging, paper, glass, and powder painting with low dew point requirements, utilize heatless desiccant air dryers.
Controller Features
Control Panel overlay with LED’s indicating:
• Power On
• Left Tower Drying
• Right Tower Drying
Base Filtration Package (Pre-filter and After-filter):
H3 Series Pre-filter:
Protect the valves and desiccant bed from
oil contamination
• Removes 99.99% of oil aerosol content to 0.01 mg/m3
• ISO Quality Class remaining oil - 1
P3 Series After-Filter:
Protects down-stream components from desiccant dust
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
Advanced Filtration Package (Dual Pre-filter and single After-filter):
P3 Series Pre-Filter:
Removes solids, protects the high-performance oil
removal filter
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
H3 Series Pre-filter:
Protect the valves and desiccant bed from
oil contamination
• Removes 99.99% oil aerosol content to 0.01 mg/m3
• ISO Quality Class remaining oil - 1
P3 Series After-Filter:
Protects down-stream components from desiccant dust
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
The HCX, HCL & HCT Series
Deltech’s HC series heatless desiccant dryers are designed to efficiently dehydrate compressed air to dew points as low as ISO 8573-1 Quality Class 1
(-94°F/-70°C)
Industries such as pharmaceutical manufacturing, laboratories, hospitals, microelectronics, food packaging, paper, glass, and powder painting with low dew point requirements, utilize heatless desiccant air dryers.
HCT SERIES
Deltech’s HCT Series is Engineered to Address the Need for Performance and Value.
The traditional HCT design uses a simple timer to alternate the flow between the two towers filled with premium grade desiccant. These are designed to deliver maximum value to applications that operate at-or-near
full capacity.
Automatic time controlled bed regeneration cycles offer consistent performance and economy of purchase. While the on-line tower is drying the air stream, the off-line tower purges a fixed amount of compressed air to dry the bed and prepares it for the next drying cycle.
• One fixed cycle mode corresponding to
ISO 8573-1 Air Quality Class 2 (-40°F /-40°C)
Imperial
| Flow Rate | 40 ft³/min. |
| Dimensions | 46" H x 32" W x 32" D |
| Weight | 365 Lbs |
Controller Features
Control Panel overlay with LED’s indicating:
• Power On
• Left Tower Drying
• Right Tower Drying
Base Filtration Package (Pre-filter and After-filter):
H3 Series Pre-filter:
Protect the valves and desiccant bed from
oil contamination
• Removes 99.99% of oil aerosol content to 0.01 mg/m3
• ISO Quality Class remaining oil - 1
P3 Series After-Filter:
Protects down-stream components from desiccant dust
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
Advanced Filtration Package (Dual Pre-filter and single After-filter):
P3 Series Pre-Filter:
Removes solids, protects the high-performance oil
removal filter
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
H3 Series Pre-filter:
Protect the valves and desiccant bed from
oil contamination
• Removes 99.99% oil aerosol content to 0.01 mg/m3
• ISO Quality Class remaining oil - 1
P3 Series After-Filter:
Protects down-stream components from desiccant dust
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
