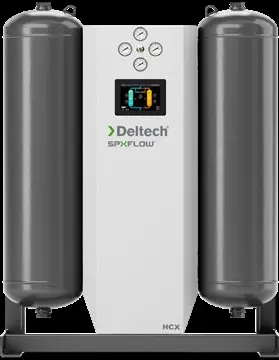

SPX Deltech HCX-1350 Heatless Regenerative Air Dryer
Have one to sell?
ConditionNew
New
The HCX, HCL & HCT Series
Deltech’s HC series heatless desiccant dryers are designed to efficiently dehydrate compressed air to dew points as low as ISO 8573-1 Quality Class 1
(-94°F/-70°C)
Industries such as pharmaceutical manufacturing, laboratories, hospitals, microelectronics, food packaging, paper, glass, and powder painting with low dew point requirements, utilize heatless desiccant air dryers.
Base Filtration Package (Pre-filter and After-filter):
H3 Series Pre-filter:
Protect the valves and desiccant bed from
oil contamination
• Removes 99.99% of oil aerosol content to 0.01 mg/m3
• ISO Quality Class remaining oil - 1
P3 Series After-Filter:
Protects down-stream components from desiccant dust
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
Advanced Filtration Package (Dual Pre-filter and single After-filter):
P3 Series Pre-Filter:
Removes solids, protects the high-performance oil
removal filter
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
H3 Series Pre-filter:
Protect the valves and desiccant bed from
oil contamination
• Removes 99.99% oil aerosol content to 0.01 mg/m3
• ISO Quality Class remaining oil - 1
P3 Series After-Filter:
Protects down-stream components from desiccant dust
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
The HCX, HCL & HCT Series
Deltech’s HC series heatless desiccant dryers are designed to efficiently dehydrate compressed air to dew points as low as ISO 8573-1 Quality Class 1
(-94°F/-70°C)
Industries such as pharmaceutical manufacturing, laboratories, hospitals, microelectronics, food packaging, paper, glass, and powder painting with low dew point requirements, utilize heatless desiccant air dryers.
HCX SERIES
Deltech’s HCX Series With Patented SensaTherm Automatically Matches Purge Air to Plant Air Demand
SensaTherm ensures maximum performance as the saved energy goes right to your bottom line.
When operating at reduced capacity, the on-line drying tower remains active longer, until its full drying capacity is utilized. Desiccant bed temperature changes are constantly monitored within each tower to precisely manage drying times and reduce purge air consumption.
SensaTherm measures the increase in desiccant bed temperature (heat of adsorption) during the drying stage and the decrease in desiccant bed temperature (heat of desorption) during the regeneration stage. These temperature changes are accurate indicators of the moisture load on the dryer. This data is interpreted by microprocessor based controls to determine how long a tower stays on-line during the drying stage.
Maximize your return-on-investment automatically. HCX Series with SensaTherm® delivers energy savings in direct proportion to load variations from your plant air demands, making it the Auditor’s Choice.
Featuring a 7” LCD, Capacitive
Color Touchscreen for at-a Glance
Monitoring and Operating Status
• The solid-state controls are housed in a polycarbonate, NEMA Class 4X, IP66 rated electrical enclosure
• Certified for quality and safety to CSA
C22.2 No.0-10, C22.2 No.14-18 & UL 508
• High visibility, color-coded steps facilitates system monitoring
• Hybrid gauges display (digital/analog) for rapid value and intuitive status
Fully-Featured Controls for Troubleshooting, Performance Trending, and Fault Alarms
• Up to 30 days of information Data logging, recorded to internal memory or USB drive
(events, states, inputs, alarms, warnings)
• A trends screen allows the user to view temperature and pressure values plotted over time
• Service reminders indicate time to perform preventive maintenance on filters, drains, valves, and desiccant
• On board spare parts list and instruction manual for ease of reference
HCX SERIES
CONTROLLER FEATURES
Communications to Pace With IOT Technology, for Connecting and Exchanging Data with Devices and Systems
• Easily communicate with user’s DCS systems utilizing Modbus TCP/IP communication via one of two available
Ethernet ports
• Access the web interface via Ethernet with a dynamic or static IP address, selectable by the user
• Standby or Offline status initiated or exited remotely through Modbus access
• Serial RS-485 for point-to-point communication of electrical devices
Imperial
| Flow Rate | 1,350 ft³/min. |
| Dimensions | 118" H x 60" W x 56" D |
| Weight | 3722 Lbs |
Base Filtration Package (Pre-filter and After-filter):
H3 Series Pre-filter:
Protect the valves and desiccant bed from
oil contamination
• Removes 99.99% of oil aerosol content to 0.01 mg/m3
• ISO Quality Class remaining oil - 1
P3 Series After-Filter:
Protects down-stream components from desiccant dust
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
Advanced Filtration Package (Dual Pre-filter and single After-filter):
P3 Series Pre-Filter:
Removes solids, protects the high-performance oil
removal filter
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
H3 Series Pre-filter:
Protect the valves and desiccant bed from
oil contamination
• Removes 99.99% oil aerosol content to 0.01 mg/m3
• ISO Quality Class remaining oil - 1
P3 Series After-Filter:
Protects down-stream components from desiccant dust
• Remove 99.999% of solids 1.0 micron and larger
• ISO Quality Class solids - 2
