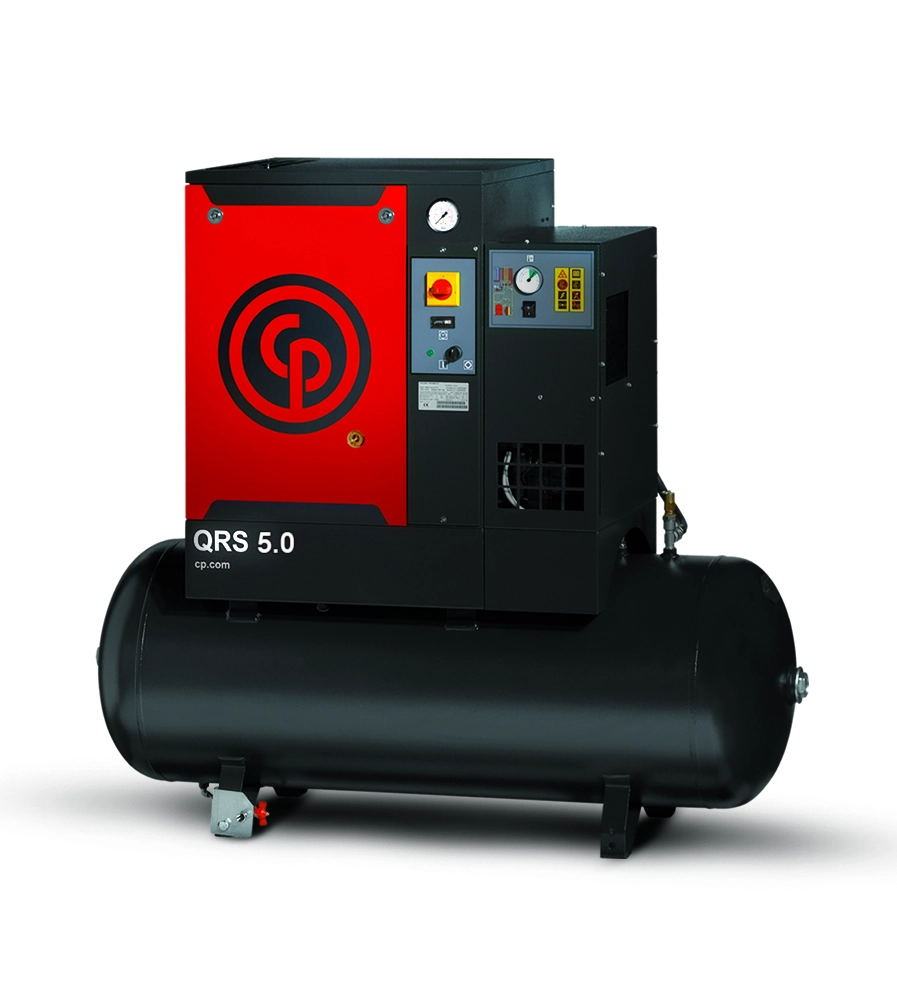

The Quiet Rotary Screw (QRS) 5.5 HPD Tank Mounted with Integrated Air Dryer
Have one to sell?
ConditionNew
1 available
New
Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body shop, paint shop or automotive dealership. With its whisper quiet design the QRS can be installed almost anywhere, and is offered with an optional mounted dryer (with tank mounted option only). The QRS is the leading rotary screw compressor for light industrial applications.
Horsepower 5
acfm @ 125 psig N/A
acfm @ 150 psig 18.1
Sound Level (dBA) 62
Base Mount L x W x H (in) 25 x 24 x 38
Net Wt. / Shipping Wt. (lb) 231 / 306
Tank Mount L x W x H (in) 57 x 24 x 50
Net Wt. / Shipping Wt. (lb) 351 / 457
Tank Mount w/Dryer L x Wx H (in) 57 x 24 x 50
Net Wt. / Shipping Wt. (lb) 425 / 531
Low sound enclosure
• 150 psig standard (3-10M)
• 125 & 150 psig standard (10-20M, 100 & 175 available with kit)
• Continuous operating capability
• 60 gal. ASME/CRN receiver tank (3-10M)
• 132 gal. ASME/CRN receiver tank (10-20M)
• Single phase 230 TEFC motor (3-7.5)
• 3-phase, 208-230/460V and 575V, TEFC Motor (3-20M)
• Start/stop operation
– QRS 3-10M 3-phase
• Load/no-load operation with timed shutdown
– QRS 5.0-7.5 HP single phase
– QRS 10-20M
• UL, cUL and CSA approved control panel
• 5 year warranty with authorized start-up
• Spin-on oil filter and separator
• NEMA 1 electrical protection
• Vibration isolated assembly
