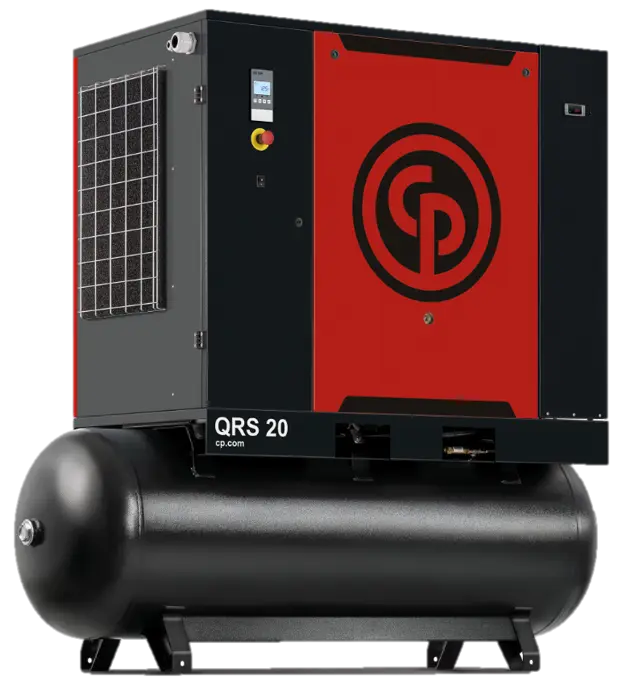

QRS-30HPD-TM Belt Drive Rotary Screw Air Compressor tank mount with integrated dryer
Have one to sell?
ConditionNew
1 available
New
The QRS 20-30 is a rugged, rotary screw compressor that combines proven design with superior performance. Ideal for automotive
and industrial applications, the QRS is engineered and built to support the most demanding requirements. Every QRS 20-30 can be supplied either base mounted or tank mounted on a 132 gallon receiver tank, and with or without an integrated air dryer. This option can save vital floor space and provide a continuous supply of quality compressed air. Installation into every application is quick and easy - simply supply power to the electrical panel, connect your discharge piping and you’ll have instant access to high quality compressed air.
Horsepower 30
acfm @ 100 psig 128.2
acfm @ 125 psig 113.8
acfm @ 150 psig 103
acfm @ 175 psig 97.5
Sound Level (dBA) 70
Base Mount L x W x H (in) 45 x 31 x 49
Weight (lb) 758
Base Mount w/Dryer L x W x H (in) 55 x 31 x 49
Weight (lb) 866
Tank Mount L x W x H (in) 75 x 31 x 72
Weight (lb) 972
Tank Mount w/Dryer L x W x H (in) 75 x 31 x 72
Weight (lb) 1,080
Standard Features:
* Low sound enclosure
* 100, 125, 150 and 175 psig
* Wye-Delta, reduced voltage start
* ES4000 Basic Controller
* Continuous operating capability
* 3-phase, 208-230/460V and 575V, TEFC Motor
* Space saving design, <16 sq. ft.
* Load/no-load with intelligent shutdown
* Spin-on oil filter and separator
* NEMA 1 electrical protection
* Vibration isolated assembly
* UL and cUL approved control panel
* Permanently aligned belt drive system
* 5 year warranty with authorized start-up
