New

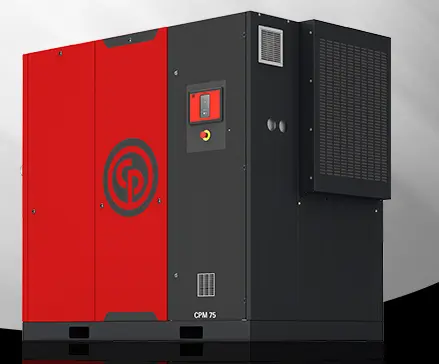

Gear Drive Rotary Screw Air Compressor CPI-120
Rotary Screw Air Compressors
Experience the innovation and worry-free operation of the Chicago Pneumatic gear drive series of rotary screw air compressors. maintenance produce an environment that lets you focus on your business, not your compressor!
| Flow | 559 ft3pm |
| Power | 120 hp |
| Voltage | 460575 |
hp 120
acfm @ 100 psig 623
acfm @ 125 psig 559
acfm @ 150 psig 513
acfm @ 175 psig 447
Sound Level (dBa) 72
L x W x H (mm) 2135 x 1221 x 1804
Base Weight (kgs) 1892
• Low sound enclosure
• 125 psig readily available
• 100, 150 and 175 psig also available
• Wye-delta starter and TEFC motor are standard
• ES4000 Advanced microprocessor control (CPI 75-120 HP)
• 460V (CP1 100 - 120 HP) and 575V (CPI 100 - 120 HP)
•Separate oil and aftercoolers
• Temperature protection on drive side motor bearings (CPI 100 - 120 HP)
• Low sound enclosure
• Side compressed air discharge for easy installation
• Easy access maintenance
• Air/oil sump tank with temperature protection
• Improved long life inlet value
• Latest design minimum pressure/oil stop value • Shipped with 8,000 hour lubricant as standard
