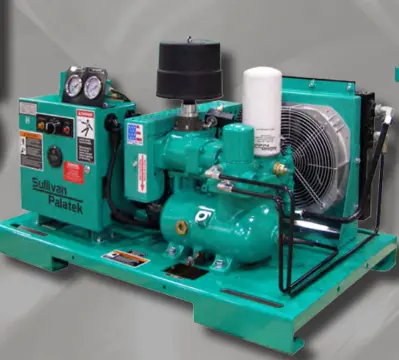

SULLIVAN PALATEK HH7.5M
Have one to sell?
ConditionNew
New
Engineered to be both reliable and versatile, the M-Series industrial air compressor is another energy efficient continuous duty compressed air solution developed by Sullivan-Palatek.
COMPRESSOR DATA
Capacity,ACFM 24
Maximum F.L., psig 175
Minimum F.L., psig 72
Motor horsepower 7.5
Motor speed 3450
Driven pulley 3.65
Drive ratio 1.64
Rotor diameter, MM 16
SOUND DATA (dba @ 1m)
Air Cooled open 82
Air Cooled enclosed 75
COOLING DATA, AIR COOLED
Fan Air Flow, CFM 665
After Cooler Approach, degree F 20
Oil Sump, fluid capacity (Gal) 1
Discharge Piping Size (FNPT) 3/4”
ELECTRICAL DATA (3 PHASE)
Motor, FLA @ 575V 7
Motor, FLA @ 460V 8.5
Motor, FLA @ 230V 17
Motor, FLA @ 208V 19
Motor, FLA @ 200V 22
Motor Insulation Class F
Motor Service Factor 1.15
Max. Motor Starts/Hr. 15
AMPERAGE FOR FUSE SIZING
575 Volt, Amps 11
460 Volt, Amps 14
230 Volt, Amps 25
208/200 Volt Amps 25
Control Voltage 120
Fuse 1 ea 1 Amp
Fuse 2 ea .5 Amp
Modular oil flooded rotary screw continuous duty industrial air compressor 208/230/460/575 volt 3-phase open drip motor
Full voltage magnetic starter with 110 volt control power
Automatic dual control
Line pressure gauge, oil temperature gauge, and hour meter
Air cooled oil cooler/aftercooler with Palasyn 45, 4000 hour synthetic oil
Spin on type oil filter and separator elements for ease of maintenance
Air Filter: combination pleated and foam dry type, easily replaceable
