HANWHA SM5100
Have one to sell?
ConditionNew
New
SM100 series focuses on accomplishing enhanced performance and efficiency to satisfy customers particularly seek performance centered products.
Flow Rate m3/hr 9,000 - 15,000
CFM 5,300 - 8,850
Power kW 500 - 1,500
HP 670 - 2,010
Discharge bar A 3.5 - 13
Psi A 50 - 188
Dimension (L×W×H) mm (P) 6,250 x 2,250 x 2,550
*Dimension and mm (S) 4,750 x 2,490 x 2,130
weight are inch (P) 246 x 89 x 100
subject to change inch (S) 187 x 98 x 84
Weight kg (P) 13,150
kg (S) 10,300

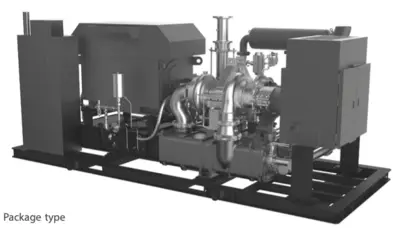

PACKAGE TYPE (P) STANDARD TYPE (S)
Air intake filter (P) (S-Option)
Inlet guide vanes (P) (S)
Blow off valve (P) (S)
Silencer (P) (S-Option)
Check valve and expansion joint (P) (S)
Complete lubrication system (P) (S)
Aftercooler (P) (S)
Drain traps on all coolers (P) (S)
Main motor (P) (S)
PLC control system (P) (S)
Base frame (P) (S-Not applicable)
Cooling water manifold (P) (S-Option)
OPTIONS
Sound enclosure (S-Not applicable)
Dual oil filter
Block valve
Companion Flange
Hot air piping
Auto trap
MODBUS/PROFIBUS Interface
Motor winding/ bearing protection
