HANWHA SM7100
Have one to sell?
ConditionNew
New
SM100 series focuses on accomplishing enhanced performance and efficiency to satisfy customers particularly seek performance centered products.
Flow Rate m3/hr 24,500 - 32,000
CFM 14,400 - 18,800
Power kW 1,000 - 3,100
HP 1,340 - 4,155
Discharge bar A 3.5 - 11.4
Psi A 50 - 165
Dimension (L×W×H) mm (P) -
*Dimension and mm (S) 5,700 x 2,800 x 2,950
weight are inch (P) -
subject to change inch (S) 224 x 110 x 106
Weight kg (P) -
kg (S) 20,500

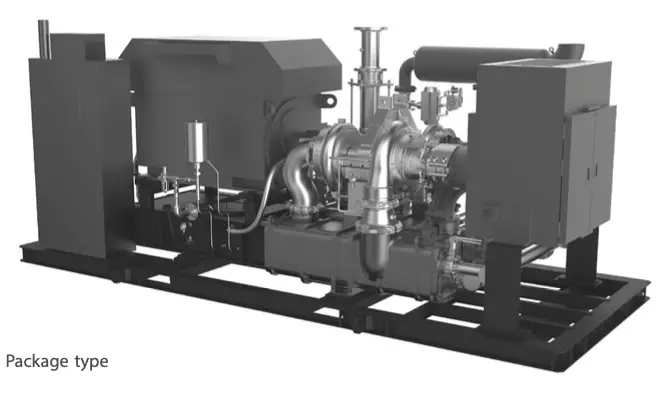

PACKAGE TYPE (P) STANDARD TYPE (S)
Air intake filter (P) (S-Option)
Inlet guide vanes (P) (S)
Blow off valve (P) (S)
Silencer (P) (S-Option)
Check valve and expansion joint (P) (S)
Complete lubrication system (P) (S)
Aftercooler (P) (S)
Drain traps on all coolers (P) (S)
Main motor (P) (S)
PLC control system (P) (S)
Base frame (P) (S-Not applicable)
Cooling water manifold (P) (S-Option)
OPTIONS
Sound enclosure (S-Not applicable)
Dual oil filter
Block valve
Companion Flange
Hot air piping
Auto trap
MODBUS/PROFIBUS Interface
Motor winding/ bearing protection
