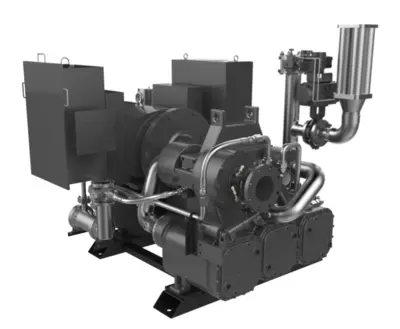

HANWHA SM2100
Have one to sell?
ConditionNew
New
SM2100 applied by new technology of Hanwha Power Systems,
is a best-fit product for customers who need low flow compressors with high efficiency.
Flow Rate m3/hr 1,200 - 3,300
CFM 700 - 1,950
Power kW 150 - 335
HP 200 - 450
Discharge bar A 3.5 - 11.4
Psi A 50 - 165
Dimension (L×W×H) mm 2,360 x 1,660 x 1,770
inch 93 x 65.4 x 70
Weight kg (P) 3,700
kg (S) 8,160
Inlet guide vanes
Blow off valve
Discharge check valve
Complete lubrication system
Aftercooler
Drain traps on all coolers
Main motor
Motor winding/ bearing protection
PLC control system
OPTIONS
Air intake filter
Base frame
Cooling water manifold
Sound enclosure
Dual oil filter
Companion Flange
Auto trap
MODBUS/PROFIBUS Interface
