JORDAIR J-FFS-D10-4

Description

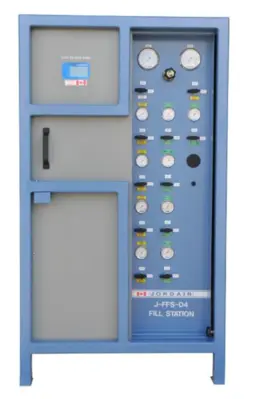

NFPA 1901 CERTIFIED REGULATOR CONTROLLED FILL STATION - SLIDING DOOR

The D series SCBA recharging system is a free standing and complete filling/de-fragmentation station for 2216, 3000, 4500 and 5500 PSIG cylinders.
- The Jordair D series fill stations are the safest filling stations offered in Canada for the containment and recharging of SCBA cylinders.
- A fully enclosed SCBA containment system that encloses both the SCBA cylinders and the filling hoses with a 1⁄2” plate steel sliding front access door. The door must be closed and locked before SCBA cylinders can be recharged.
- A toggle activated valve stops air flow to the filling points when the door is opened.
- The front access door is held in the closed position by a spring loaded pin type door lock.
- Heavy wall schedule 80 steel 8” pipe used to contain the SCBA cylinders within the recharge station.
- Anti-abrasion collars and liners in the SCBA containment sleeves to protect the exterior of the SCBA cylinders
from abrasion damage during the filling process.
- 7000 PSIG inlet shut off valve to isolate the recharging station from the compressor and air storage cylinders.
- One anodised aluminum, self-venting and adjustable regulator with operating pressures from 0 to 7,000-PSIG
inlets and 0 to 7,000-PSIG outlet pressures.
- Self-venting regulator comes complete with 4” inlet and discharge pressure gauges; gauges are rated for 7500.
Gauges read in both PSI & kPa.
- 21⁄2” pressure gauges for 2216, 3000 or 4500 and 5500 psig filling, installed for each fill outlet to indicate SCBA
recharge pressure. Gauges read in both PSI & kPa.
- Panel mounted SCBA cylinder shut off valves for 2216, 3000 or 4500, 5500 PSIG fill positions.
- SCBA recharge assemblies are supplied for the selected 2216, 3000, 4500 or 5500 psig filling.
- A CRN certified safety relief valve is set for 2400, 3200, 4700 psig to protect the filling of the 2216, 3000, 4500
psig SCBA or SCUBA cylinders.
- The SCBA 4500 and 5500 PSIG cylinder fill hose assemblies will only recharge the high-pressure 4.5 SCBA
cylinders. If a 2216 SCBA cylinder is accidentally connected the 4500 PSIG filling hose the filling adaptor will
automatically vent to atmosphere.
- All recharge hose assemblies are equipped with restriction orifices set to the CSA Z94.4 rate of 300 psig per minute,
to control filling speed. When a cascade system is used, this prevents rapid cylinder expansion and significant
pressure drop due to the compression heat created during a rapid refilling situation.
- All pressure piping conforms to ASME code B31.1 and B31.3.
- All D series fill stations have been third party tested and certified to 5500 psig by Intertek and Power Tech Labs.
