JORDAIR JBP41-7300-6-S
Have one to sell?
ConditionNew
New

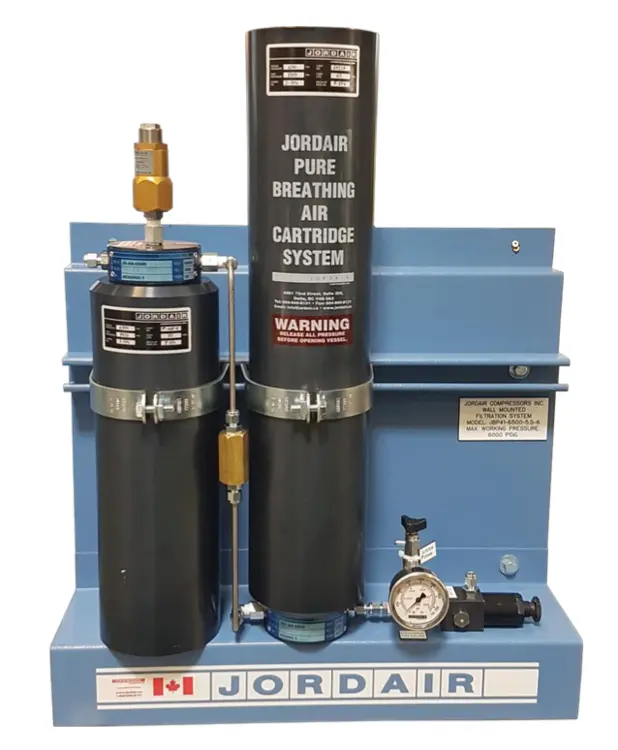

7300 PSIG STANDARD FILTRATION SYSTEMS
Consists of 1 x JS-7300-A-1008 Separator & 1 x JBF-7300-6-22 (Filter Only, 22" Tower)
- A formed steel powder coated panel mounted filter system
- Stainless steel tube and stainless steel fittings rated for 7300 PSIG
- CRN certified final oil/moisture separator with high efficiency coalescing element
- CRN certified safety relief valve mounted on the separator
- CRN certified check valve after the final separator stops back flow through the filter.
- CRN certified pressure maintaining valve set at 2,800 psig to maintain pressure in the filter and optimize the filter cartridge life.
- The complete purification system is CSA certified under the Jordair certificate number LR77799.
- The breathing air quality meets/exceeds the current CSA standard CAN3-Z180.1-13.
- Jordair chamber accept Bauer standard and Securus cartridges as well as the “JB” class of Jordair cartridges.
- When adding a Securus system, the purification model has “S” added to it and the drying and purifying capacity may increase by 15% to 20% due to the dew-point monitoring of the cartridge and changing ambient temperatures.
MAXIMUM PRESSURE 7300 PSIG
MAX FLOW 20 SCFM
PROCESS CAPACITY 56,500 FT3
CARTRIDGES* 61687
WEIGHT 60 KG
SIZE (CM) H xW xD 90 x 90 x 20
Filter Design Features:
- Lifetime Filter Chambers
- Corrosion Protected
Cartridge Features:
- Sealed Cartridges
- Oil, CO, H2O Cartridge
- Extended Cartridge Life
FILTRATION UPGRADE OPTIONS
- CRN certified Automatic Condensate Drain System to drain accumulating compression liquids during compressor operation and at shut down.
- Condensate drain collection tank to contain the compression liquids for disposal.
