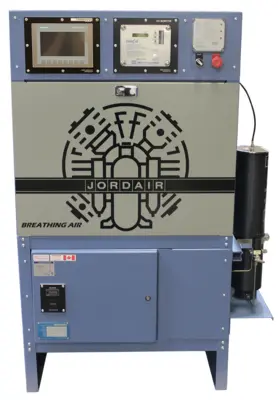

JORDAIR FIRE-KAT6-12-1E
Have one to sell?
ConditionNew
New
The 2021 FIRE-KAT features a new identity with two tone colour and ease of service from the rear of the unit. Many new features provide a service friendly and technically advanced design with active HMI screen customer interface which displays oil and final pressures and final temperature. Includes nationally certified 7300 PSIG filter systems for added safety and extended component life of 35 operating years. Now with a 5-year system and 10-year block warranty.
FLOW RATE 12.6 SCFM
MOTOR 7.5 HP
FILTRATION SYSTEM JBP61-7300-6-S
CAPACITY* 56,500 FT3
WEIGHT 705 LBS
SIZE (IN) Hx D x W 62” x 32.5” x 41.5”
SCOPE OF SUPPLY AND OPTIONS
- Logo 8 PLC with panel mounted 5" x 8" TP700 HMI screen showing compressor fault data
- Panel mounted CO monitor with regulator
- Panel mounted Securus Moisture Monitor
- Low oil pressure transmitter and alarm and screen display of the fault and actual operating data
- High temperature transmitter with alarm and screen display of the fault and actual operating data
- Final pressure transmitter set for customers required shut down pressure
- Final pressure displayed on the HMI screen
- Auto-run and manual mode operation with emergency shut down button
- Optional connection to the customer and service technicians cell phone
- Inter-stage and oil pressure gauges are mounted on the block and visible at the back side of the compressor
- Nationally certified CRN registered 7300 PSIG filter system matched to the compressor capacity
- Final separator cycle counter to ensure filter system safety and record pressure cycles
- Cycle count is displayed on the panel mounted HMI display screen
- Filter system life rated for 35 years or 100,000 pressure cycles
- Automatic condensate drain and silent collection system
