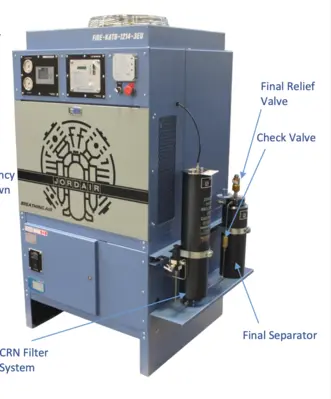

JORDAIR FIRE-KAT5-220-3EUS

System Features:
Balanced Design
Low Noise
35 Year Filter Chambers
Extended Cartridge Life

Block Features:
Low Oil Consumption
Oil Filter Cartridge
High Tech HP Piston
Heavy Duty Crank

SCOPE OF SUPPLY AND OPTIONS
- Fully enclosed and silent frame design for a 72 D.b.a sound level at 1 meter
- Includes an auxiliary fan which increases block cooling by 50% more than the block mounted fan
- Increased cooling ensures the filtered air is at ambient and provides the most efficient and longest cartridge life
- Logo 8 PLC with panel mounted 5" x 8" TP700 HMI screen showing compressor fault data
- Panel mounted CO monitor with regulator
- Panel mounted Securus Moisture Monitor
- Low oil pressure transmitter and alarm and screen display of the fault and actual operating data
- High temperature transmitter with alarm and screen display of the fault and actual operating data
- Final pressure transmitter set for customers required shut down pressure
- Final pressure displayed on the HMI screen
- Auto-run and manual mode operation with emergency shut down button
- Optional connection to the customer and service technicians cell phone
- Inter-stage and oil pressure gauges are mounted on the block and visible at the back side of the compressor
- Nationally certified CRN registered 7300 PSIG filter system matched to the compressor capacity
- Final separator cycle counter to ensure filter system safety and record pressure cycles
- Cycle count is displayed on the panel mounted HMI display screen
- Filter system life rated for 35 years or 100,000 pressure cycles
- Automatic condensate drain and silent collection system
