JORDAIR IA5-1214-3E
Have one to sell?
ConditionNew
New

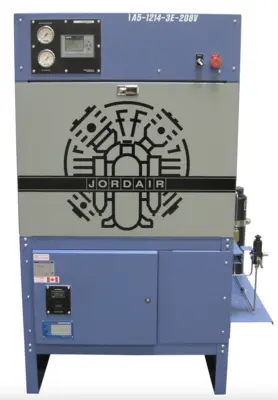

The 2021 Industrial Air Compressor features a new identity with two tone colour and ease of service from the rear of the unit. Many new features provide a service friendly and technically advanced design with active customer interface. Includes nationally certified 7300 PSIG filter systems for added safety and extended component life of 35 operating years.
FLOW RATE 10.6 SCFM
MOTOR 10.0 HP
OIL & WATER SEPARATOR JS-7300-A-1008
WEIGHT 320 KG
SIZE (CM) H xD xW 120 x 85 x 99
SCOPE OF SUPPLY AND OPTIONS
- Logo 8 PLC with panel mounted 4" x 4" TDE 6 line screen showing compressor fault data
- Low oil alarm and screen display of the fault
- High temperature alarm and screen display of the fault
- Final pressure switch set for customers required shut down pressure
- Auto-run and manual mode operation with emergency shutdown button
- Optional Connection to the customer and service technicians cell phone
- Panel mounted pressure gauge display for final pressure and oil pressure
- Inter-stage pressure gauges are mounted on the block and visible at the back side of the compressor
- Nationally certified CRN registered 7300 PSIG final oil/water final coalescing separator
- Final separator cycle counter to ensure filter system safety and record pressure cycles
- Cycle count is displayed on the panel mounted display screen
- Filter system life rated for 35 years or 100,000 pressure cycles
- Automatic condensate drain and silent collection system
