JORDAIR MINI-KAT5-O-1E
Have one to sell?
ConditionNew
New

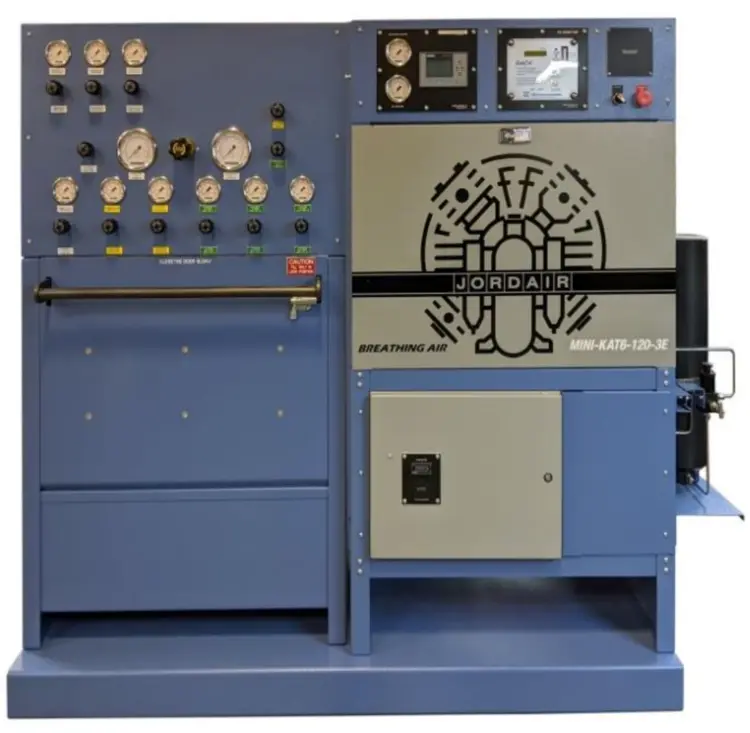

The 2021 MINI-KAT features a new identity with two tone colour and ease of service from the front and rear of the unit. The front control panel contains the TDE screen, oil and final pressure gauges and ESD shut down button. The CO monitor and optional Securus Moisture Monitor are located within the control panel for ease of operator monitoring. An upgrade is available to have an HMI real time display with pressure transmitters for oil and final pressure and a RDT readout of the final temperature. Many new features provide a service friendly and technically advanced design with the standard TDE display and the optional active HMI customer interface. The CRN filter system is mounted on the right side of the compressor for ease of service and cartridge change.
The unit includes a nationally certified CRN ASME designed 7300 PSIG filter systems with corrosion free stainless steel fittings for added safety and extended component life. The 2021 MINI-KAT now includes the unequalled limited 5-year system and 10-year Bauer block warranty.
FLOW RATE 7.7 SCFM
MOTOR 5.0 HP
FILTRATION SYSTEM JBP11-7300-6
CAPACITY* 21,800 FT3
WEIGHT 640 KG
SIZE (CM) Hx D x W 170 x 86 x 159
System Features:
Balanced Design
Low Noise
35 Year Filter Chambers
Extended Cartridge Life
Block Features:
Low Oil Consumption
Oil Filter Cartridge
High Tech HP Piston
Heavy Duty Crank
SCOPE OF SUPPLY AND OPTIONS
- Logo 8 PLC with panel mounted 4" x 4" TDE 6 line screen showing compressor fault data
- Panel mounted CO monitor with regulator
- Low oil alarm and screen display of the fault
- High temperature alarm and screen display of the fault
- ESD emergency shut down button
- Final pressure switch set for customers required shut down pressure
- Auto-run and manual mode operation with emergency shutdown button
- Optional FLEXY connection to the customer and service technicians cell phone
- Optional Securus Moisture Control Monitor with status indicator lights
- Panel mounted pressure gauge display for final pressure and oil pressure
- Inter-stage pressure gauges are mounted on the block and visible at the back side of the compressor
- Nationally certified CRN registered 7300 PSIG filter system cartridge life matched to the compressor capacity
- Final separator cycle counter to ensure filter system safety and record pressure cycles
- Cycle count is displayed on the panel mounted display screen
- Automatic condensate drain and silent collection system
- Three fill point SCBA fill station with manual cascade control, specify SCBA fill pressure
- Adjustable regulator allows the customer to change SCBA fill pressure up to the final pressure of the system
- Fill station relief valve is set to protect the designated fill pressure
- Toggle valve closes the air flow to the SCBA fill points while the fill station door is open
- Two/Three DOT high pressure cylinders, 4500 or 6000 PSIG depending on pressure specified
